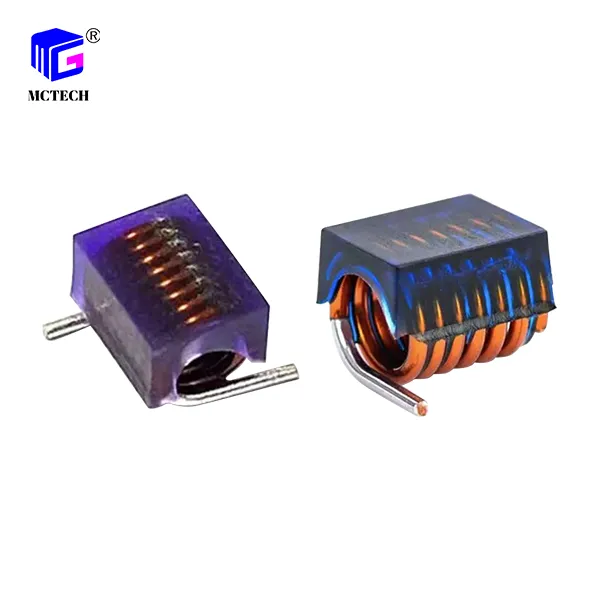

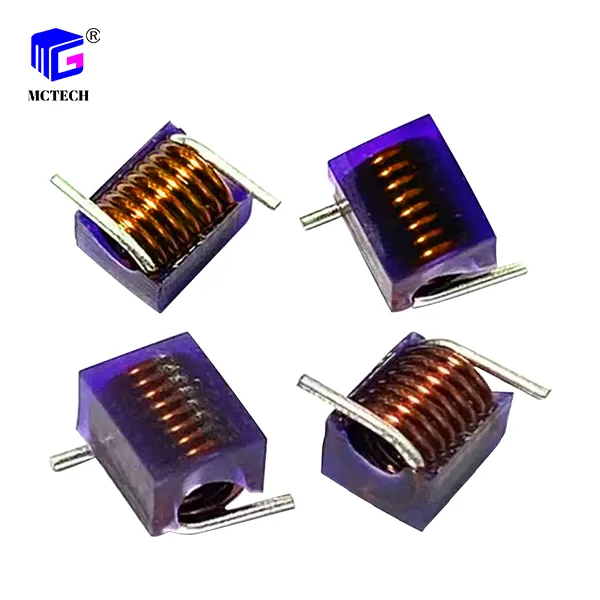

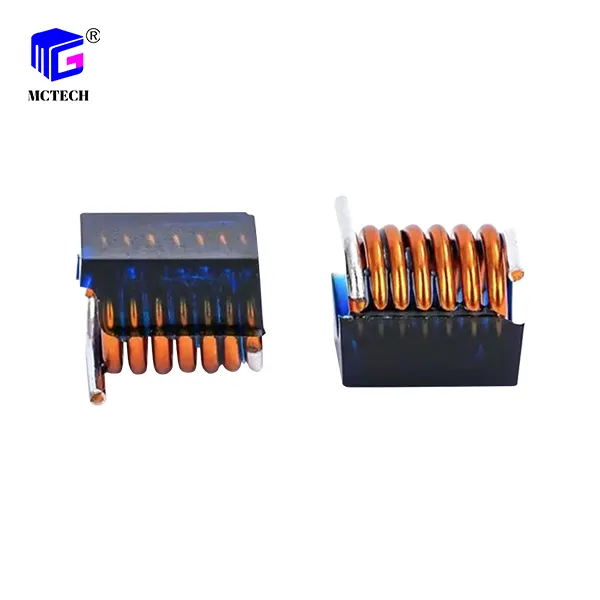

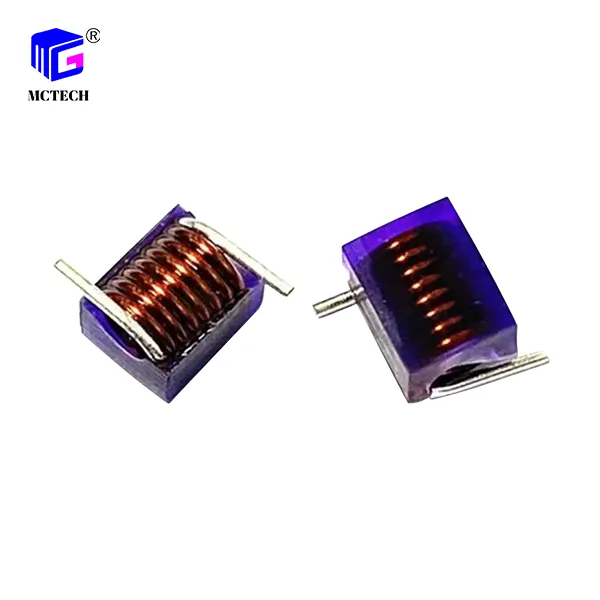

Inductor ASPC Series

Applications:

Satellite communication systems.
TVs an audio equipment.
Microwave equipment.
Band pass equipment.

Features:

High Q over a wide frequency range.
Jacket with a high temperature material which assures mechanical stability and very close tolerance.
Forms a flat top making them suitable for automatic placement and reflow.
Tinned leads assure reliable soldering.

Part numbering system

Note: (A) Series name (B) Dimension (C) Inductance (R10=0. 1uH)

(D) Inductance tolerance: J: ±5% K: ±10%

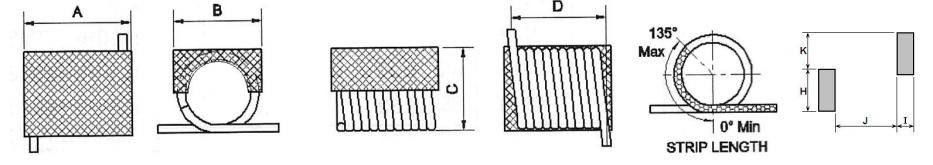

Mechanical dimension: (Unit: mm)

Series/Size

Packing
(Pcs/Reel)

ASPC0403

3.68Max

3.05Max

3.18Max

2.92±0.25

3.30

1.27

1.65

2.79

ASPC0504

4.95Max

3.81Max

4.20Max

4.32±0.39

5.16

1.48

2.85

2.62

ASPC0703

6.86Max

3.05Max

3.18Max

5.84±0.25

3.30

1.27

4.70

2.79

ASPC1006

10.55Max

6.35Max

5.97Max

7.98±0.51

4.70

2.04

5.95

2.42

Note:

Electrical Characteristics: TEST CONDITION: at 25oC

Part No.	Turns	Inductance L(nH)	Q (Min.)	Test Freq. (MHz)	SRF(MHz) Min.	DCR (mΩ)Max.	Rated Current (A)Max.
ASPC0403-2N5K	1	2.5	145	150	12500	1.1	4.0
ASPC0403-5N0K	2	5.0	140	150	6500	1.8	4.0
ASPC0403-8N0J	3	8.0	140	150	5000	2.6	4.0
ASPC0403-12N5J	4	12.5	137	150	3300	3.4	4.0
ASPC0403-18N5J	5	18.5	132	150	2500	3.9	4.0
ASPC0504-22NJ	5	22	100	150	3200	4.2	3.0
ASPC0504-27NJ	5	27	100	150	2700	4.0	3.5
ASPC0504-33NJ	6	33	100	150	2500	4.8	3.0
ASPC0504-39NJ	6	39	100	150	2100	4.4	3.0
ASPC0504-47NJ	7	47	100	150	2100	5.6	3.0
ASPC0504-56NJ	7	56	100	150	1500	6.2	3.0
ASPC0504-68NJ	8	68	100	150	1500	8.2	2.5
ASPC0504-82NJ	8	82	100	150	1300	9.4	2.5
ASPC0504-R10J	9	100	100	150	1200	12.3	1.7
ASPC0504-R12J	10	120	100	150	1100	17.3	1.5
ASPC0703-17N5J	6	17.5	100	150	2200	4.5	4.0
ASPC0703-22NJ	7	22.0	102	150	2100	5.2	4.0
ASPC0703-28NJ	8	28.0	105	150	1800	6.0	4.0
ASPC0703-35N5J	9	35.5	112	150	1500	6.8	4.0
ASPC0703-43NJ	10	43.0	106	150	1200	7.9	4.0
ASPC1006-90NJ	9	90	95	50	1140	15.0	3.5
ASPC1006-R111J	10	111	87	50	1020	15.0	3.5
ASPC1006-R130J	11	130	87	50	900	20.0	3.0
ASPC1006-R169J	12	169	95	50	875	25.0	3.0
ASPC1006-R206J	13	206	95	50	800	30.0	3.0
ASPC1006-R222J	14	222	92	50	730	35.0	3.0
ASPC1006-R246J	15	246	95	50	685	35.0	3.0
ASPC1006-R307J	16	307	95	50	660	35.0	3.0
ASPC1006-R380J	17	380	95	50	590	50.0	2.5
ASPC1006-R422J	18	422	95	50	540	60.0	2.5
ASPC1006-R491J	19	491	95	50	535	65.0	2.0
ASPC1006-R538J	20	538	87	50	490	90.0	2.0

NOTE:

1. All test data is referenced to 25℃ ambient.

2. Rated Current: The current when temperature of coil increase up to △T= 15℃ Max (25℃ ambient).

3. Operating temperature range is -40℃ to 125℃.
