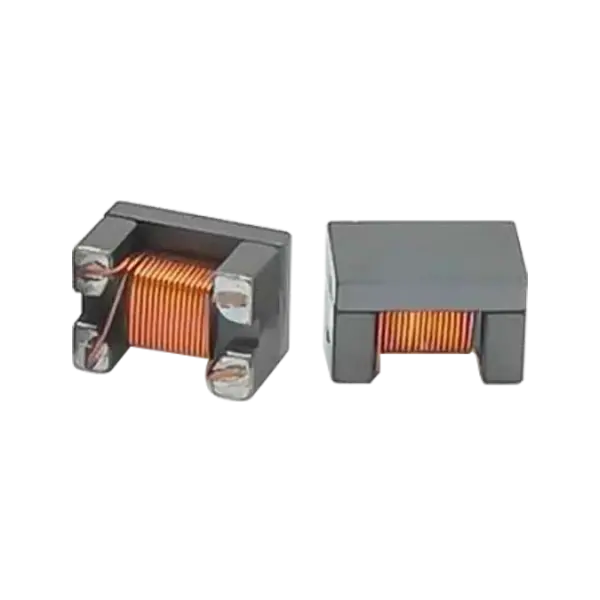

Features:
Winding type realizes small size and low profile.
Prevention of commen mode noise at high frequency.
30Ω~2200Ω are optional for different noise level and signal frequency.
Excellent solderability.
Applications:
USB2.0 of PC, peripheral equipments, small digital AV equipments, etc.
LVDS lines of Note PC, LCD.
Audio lines.

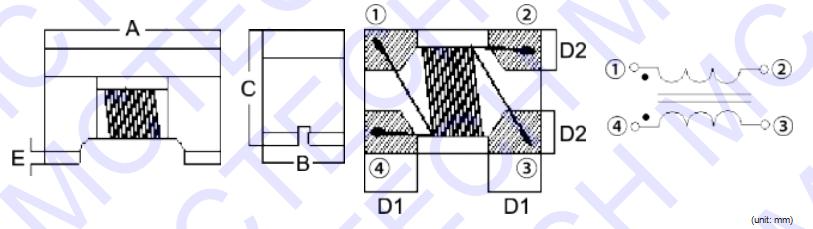

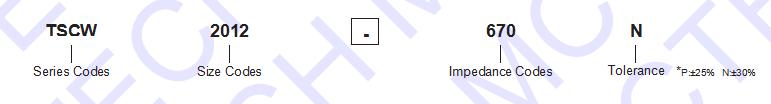

| Series size | A | B | C | D1 | D2 | E |
| TSCW2012 | 2.0±0.2 | 1.2±0.2 | 1.2±0.2 | 0.55±0.1 | 0.45±0.1 | 0.15±0.1 |
| TSCW3216 | 3.2±0.2 | 1.6±0.2 | 1.9±0.2 | 0.7Typ. | 0.6Typ. | 0.2±0.1 |
| TSCW3225 | 3.2±0.2 | 2.5±0.2 | 2.15±0.2 | 0.8Typ. | 0.9Typ. | 0.2±0.1 |
| TSCW4532 | 4.5±0.2 | 3.2±0.2 | 2.8±0.2 | 1.0Typ. | 1.2Typ. | 0.2±0.1 |
| TSCW3225L | 3.2±0.2 | 2.5±0.2 | 2.5Max | 0.8Typ. | 0.9Typ. | 0.2±0.1 |
| TSCW4532L | 4.5±0.2 | 3.2±0.2 | 2.8±0.2 | 1.0Typ. | 1.2Typ. | 0.2Typ. |
| PART NO. | Z(Ω) | Freq (MHz) | DCR(Ω) Max | Idc(mA) Max | Rated Voltge (V) | Insulation Resistance(m) | |
| TSCW2012-670N | 67 | 100 | 0.25 | 400 | 50 | 10 |
|
| TSCW2012-900N | 90 | 100 | 0.3 | 400 | 50 | 10 |
|
| TSCW2012-121N | 120 | 100 | 0.3 | 370 | 50 | 10 |
|
| TSCW2012-161N | 160 | 100 | 0.35 | 330 | 50 | 10 |
|
| TSCW2012-181N | 180 | 100 | 0.35 | 330 | 50 | 10 |
|
| TSCW2012-201N | 200 | 100 | 0.4 | 300 | 50 | 10 |
|
| TSCW2012-221N | 220 | 100 | 0.4 | 300 | 50 | 10 |
|
| TSCW2012-261N | 260 | 100 | 0.4 | 300 | 50 | 10 |
|
| TSCW2012-361N | 360 | 100 | 0.45 | 280 | 50 | 10 |
|
| TSCW2012-601N | 600 | 100 | 0.6 | 220 | 50 | 10 |
|
| TSCW2012-801N | 800 | 100 | 0.88 | 300 | 50 | 10 |
|
| TSCW2012-102N | 1000 | 100 | 1.3 | 150 | 50 | 10 |
|
| TSCW3216-900N | 90 | 100 | 0.3 | 370 | 50 | 10 |
|
| TSCW3216-161N | 160 | 100 | 0.4 | 340 | 50 | 10 |
|
| TSCW3216-261N | 260 | 100 | 0.5 | 310 | 50 | 10 |
|
| TSCW3216-371N | 370 | 100 | 0.5 | 300 | 50 | 10 |
|
| TSCW3216-601N | 600 | 100 | 0.8 | 260 | 50 | 10 |
|
| TSCW3216-801N | 800 | 100 | 0.9 | 240 | 50 | 10 |
|
| TSCW3216-102N | 1000 | 100 | 1 | 230 | 50 | 10 |
|
| TSCW3216-142N | 1400 | 100 | 1 | 220 | 50 | 10 |
|
| TSCW3216-202N | 2000 | 100 | 1.2 | 200 | 50 | 10 |
|
| TSCW3216-222N | 2200 | 100 | 1.2 | 200 | 50 | 10 |
|
| TSCW3225-800N | 80 | 100 | 0.12 | 640 | 50 | 10 |
|
| TSCW3225-161N | 160 | 100 | 0.15 | 480 | 50 | 10 |
|
| TSCW3225-271N | 270 | 100 | 0.25 | 450 | 50 | 10 |
|
| TSCW3225-501N | 500 | 100 | 0.3 | 1000 | 50 | 10 |
|
| TSCW3225-601N | 600 | 100 | 0.12 | 1000 | 50 | 10 |
|
| TSCW3225-801N | 800 | 100 | 0.35 | 350 | 50 | 10 |
|
| TSCW3225-102N | 1000 | 100 | 0.35 | 350 | 50 | 10 |
|
| TSCW3225-142N | 1400 | 100 | 0.2 | 1200 | 50 | 10 |
|
| TSCW3225-242N | 2400 | 100 | 0.3 | 640 | 50 | 10 |
|
| PART NO. | Z(10MHz) (Ω) | L(μH) | Freq (KHz/V) | DCR单组 (Ω) | Idc(mA) Max | Rated Voltge (V) | Insulation Resistance(m | |
| TSCW3225L-110R | 300min 500typ | 11 +50%/-30% | 100/0.1 | 0.4 | 300 | 80 | 10 |
|
| TSCW3225L-220R | 300min 1000typ | 22 +50%/-30% | 100/0.1 | 0.5 | 250 | 80 | 10 |
|
| TSCW3225L-510R | 1000min 2600typ | 51 +50%/-30% | 100/0.1 | 0.7 | 200 | 80 | 10 |
|
| TSCW3225L-101R | 2200min 5100typ | 100 +50%/-30% | 100/0.1 | 1.5 | 150 | 80 | 10 |
|
| TSCW3225L-201R | 10000min 15000typ | 200 +50%/-30% | 100/0.1 | 4.8 | 70 | 80 | 10 |
|
| PART NO. | Z(Ω) | Freq (MHz) | DCR(Ω) Max | Idc(mA) Max | Rated Voltge (V) | Insulation Resistance(m) | |
| TSCW4532-800N | 80 | 100 | 0.05 | 3000 | 50 | 10 |
|
| TSCW4532-900N | 90 | 100 | 0.05 | 3000 | 50 | 10 |
|
| TSCW4532-121N | 120 | 100 | 0.1 | 3000 | 50 | 10 |
|
| TSCW4532-221N | 220 | 100 | 0.1 | 1300 | 50 | 10 |
|
| TSCW4532-231N | 230 | 100 | 0.1 | 1300 | 50 | 10 |
|
| TSCW4532-601N | 600 | 100 | 0.12 | 1500 | 50 | 10 |
|
| TSCW4532-801N | 800 | 100 | 0.16 | 1000 | 50 | 10 |
|
| TSCW4532-102N | 1000 | 100 | 0.18 | 1200 | 50 | 10 |
|
| TSCW4532-142N | 14000 | 100 | 0.2 | 700 | 50 | 10 |
|
| PART NO. | Z(10MHz) (Ω) | L(μH) | Freq (KHz/V) | DCR单组 (Ω) | Idc(mA) Max | Rated Voltge (V) | Insulation Resistance(m | |
| TSCW4532L-110R | 300min 600typ | 11 | 100/0.1 | 0.60 | 360 | 50 | 10 |
|
| TSCW4532L-220R | 500min 1200typ | 22 | 100/0.1 | 1.00 | 310 | 50 | 10 |
|
| TSCW4532L-510R | 1000min 2800typ | 51 | 100/0.1 | 1.00 | 230 | 50 | 10 |
|
| TSCW4532L-101R | 2000min 5800typ | 100 | 100/0.1 | 2.00 | 200 | 50 | 10 |
|
| TSCW4532L-201R | 5000min 14000typ | 200 | 100/0.1 | 4.50 | 100 | 50 | 10 |
|

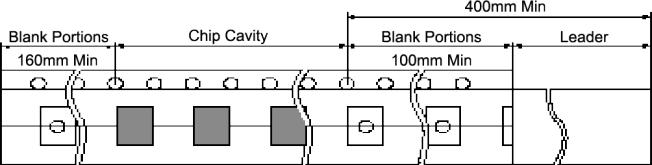

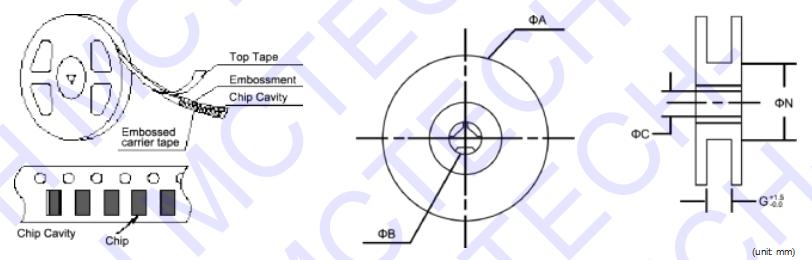

| Series | QTY(Pcs/Reel) | A(Ref.) | B(Ref.) | C(Ref.) | N(Ref.) | G(Ref.) |
| TSCW2012 | 2000 | 178±2.0 | 22±2.0 | 12.5±1.5 | 98±2.0 | 12 |
| TSCW3216 | 2000 | 178±2.0 | 22±2.0 | 12.5±1.5 | 98±2.0 | 12 |
| TSCW3225 | 1000 | 178±2.0 | 22±2.0 | 12.5±1.5 | 57±2.0 | 12 |
| TSCW3225L | 1000 | 178±2.0 | 22±2.0 | 12.5±1.5 | 57±2.0 | 12 |
| TSCW4532 | 500 | 178±2.0 | 22±2.0 | 12.5±1.5 | 57±2.0 | 12 |
| TSCW4532L | 500 | 178±2.0 | 22±2.0 | 12.5±1.5 | 57±2.0 | 12 |
