Inductor SBCM0905 Series

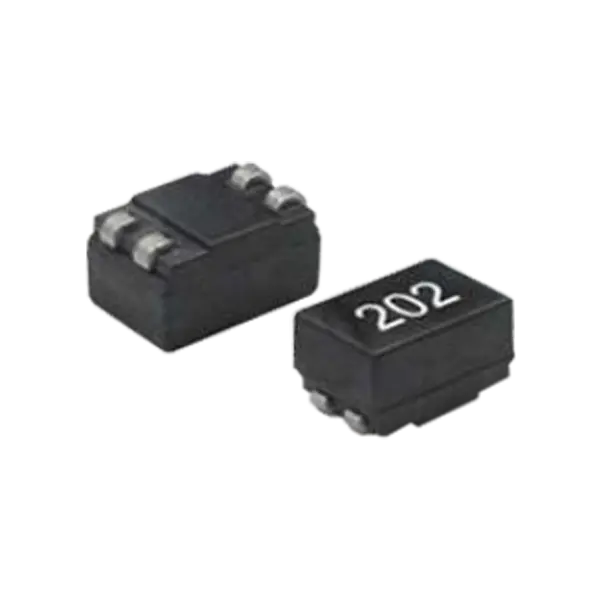

  • embedded inductor

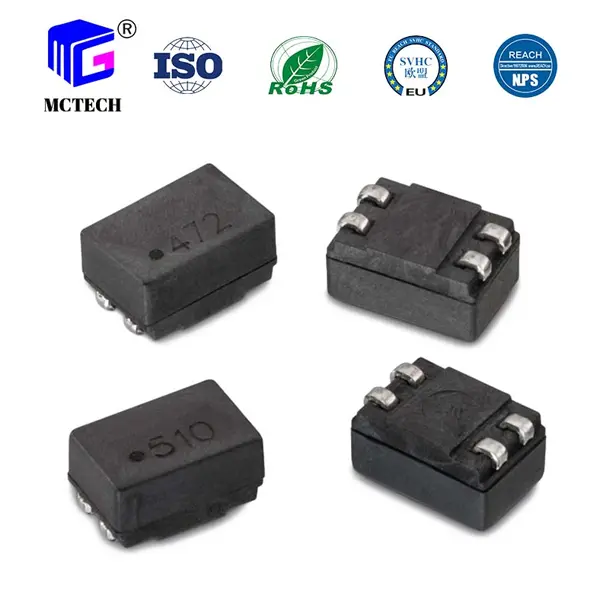

  • emc inductor

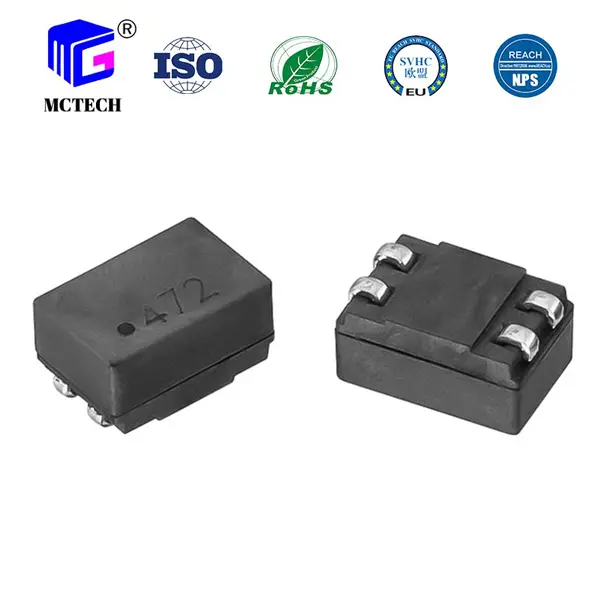

  • emi inductor
  • embedded inductor
  • emc inductor
  • emi inductor
  • Common Mode Inductive Choke.

  • Ring core with the magnetic core material of NiZn and MnZn.

  • Operating temperature: –40 °C to +125 °C.

  • Operating voltage: 80 VDC (42 VAC).

  • Recommended solder profile: Reflow.

Applications:

  • Current compensated choke for data and signal lines.

  • Power supply systems.

  • Filter for measurement signals.

  • CAN.

  • Suppression for common mode noise.

As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

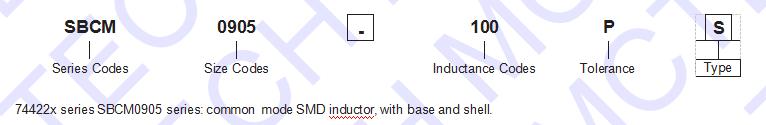

Explanation of part numbers

Inductor SBCM0905 Series

Inductor SBCM0905 Series

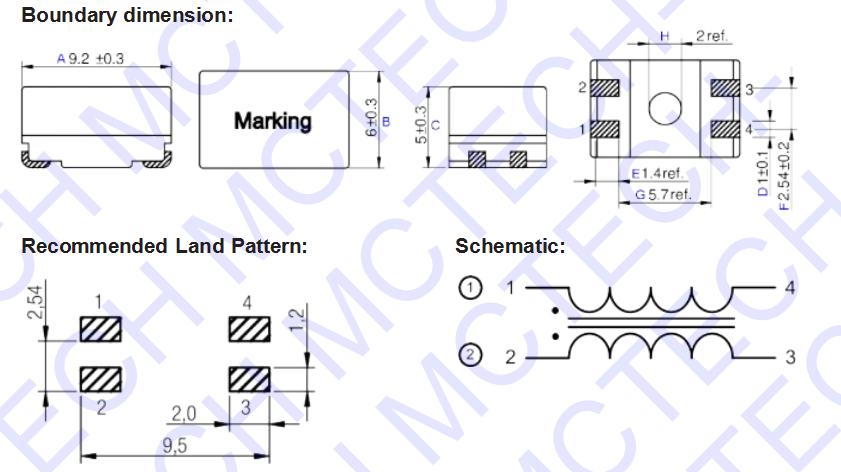

Series sizeABCDEFGHPacking(Pcs/Reel)
SBCM09059.2±0.36.0±0.35.0±0.31.0±0.11.4 Ref.2.54±0.25.7 Ref.2.0 Ref.1000


Electrical characteristics:

Part NO.L(0A)
(uH±30%)
LS
(nH)
IR
(A)
Z
(Ω)max.
DCR
(Ω)max.
Winding StylePDF
SBCM0905-100P10551.69200.08bifilar

pdf

SBCM0905-100P-S108501.69200.08sectional

pdf

SBCM0905-250P25601.028000.12bifilar

pdf

SBCM0905-250P-S2515001.028000.12sectional

pdf

SBCM0905-400P40800.931000.25bifilar

pdf

SBCM0905-400P-S4022500.931000.25sectional

pdf

SBCM0905-510P51851.055000.16bifilar

pdf

SBCM0905-510P-S5131501.055000.16sectional

pdf

SBCM0905-251P250601.218000.13bifilar

pdf

SBCM0905-501P500751.033000.15bifilar

pdf

SBCM0905-102P1000900.860000.31bifilar

pdf

SBCM0905-202P20001300.692000.42bifilar

pdf

SBCM0905-472P47001800.5200000.75bifilar

pdf

SBCM0905-652P65002800.4184000.95bifilar

pdf

SBCM0905-103P100003200.35250001.2bifilar

pdf

SBCM0905-203P200004900.2500002.6bifilar

pdf
