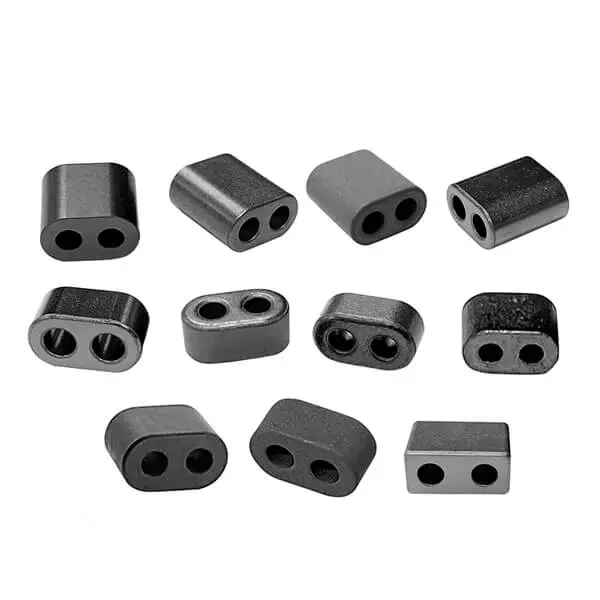

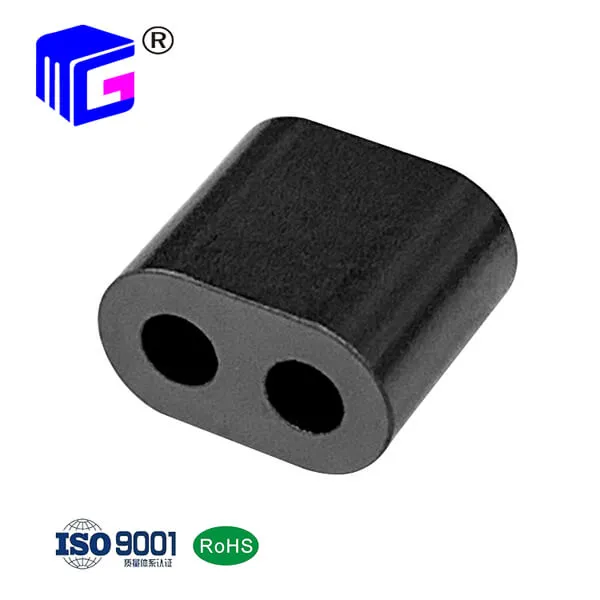

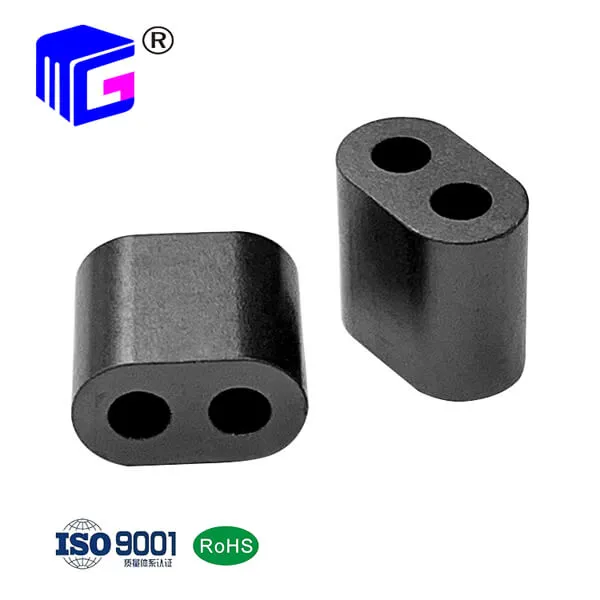

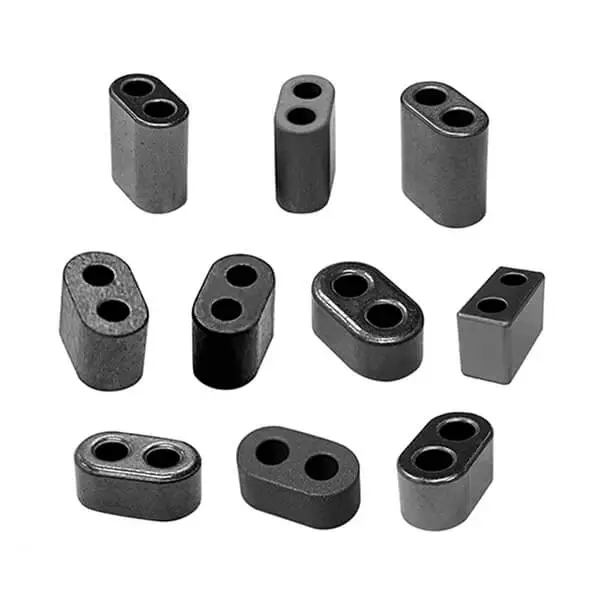

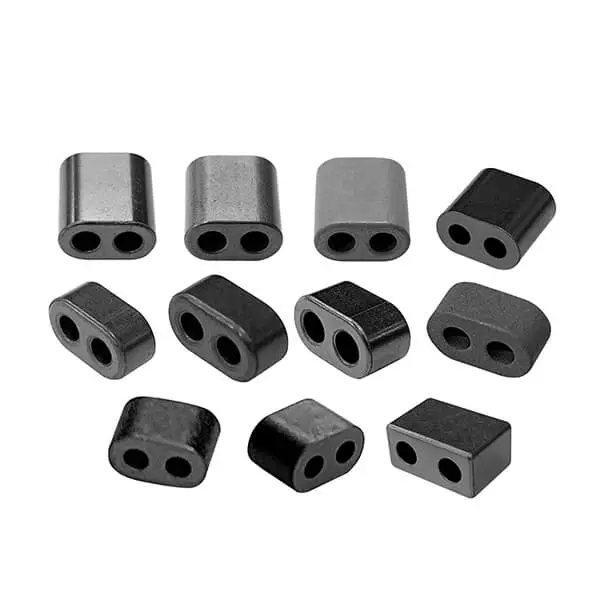

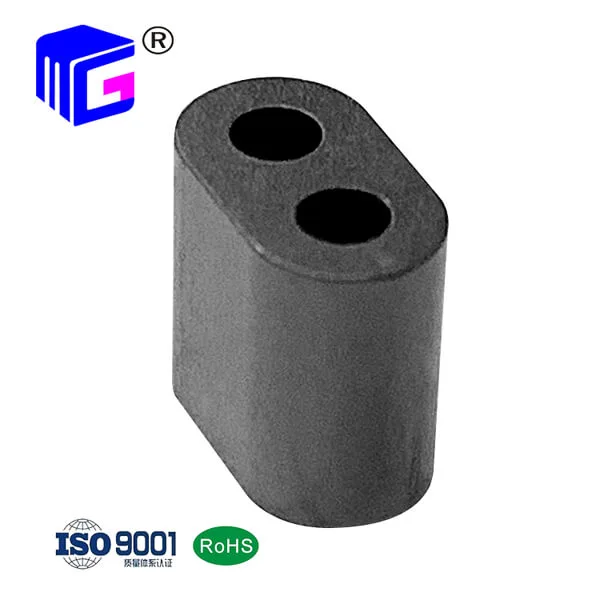

Multi-Aperture Cores

  • magnetic steel core
  • magnetic powder cores
  • low frequency ferrite cores
  • large ferrite core
  • pq ferrite core
  • nanocrystalline magnetic core
  • rf ferrite core
  • magnetic steel core
  • magnetic powder cores
  • low frequency ferrite cores
  • large ferrite core
  • pq ferrite core
  • nanocrystalline magnetic core
  • rf ferrite core
  • Product Model: MBN - 43 - 2402

  • MBN:Model code

  • 43: Material number

  • 2402: Size code

As one of the reputable magnetic core manufacturers, we provide the high-quality electronic component wholesale to meet customers' needs.

Material Properties

Material: FerriteAL value test condition: nH/N² @10KHz
Material Number:43616773
Permeability / µi800125402500
AL  Tolerance (%)±25%±25%±25%±25%


Material Information

43 Material Multi-Aperture Cores: The material is used for EMI/RFI suppression in the 20 MHz to 250 MHz range

61 Material Multi-Aperture Cores: The material is designed for inductive applications up to 25mhz and also suppresses noise frequencies from 200MHz to 1000 MHz.

67 Material Multi-Aperture Cores: The Material is for high Q inductors up to 50 MHz. Suppresses frequencies above 1000 MHz.

73 Material Multi-Aperture Cores: Frequency range<50 MHz


Electrical characteristics

ModelMagnetic Permeability
(μi)
A
Width(mm)
B
Length(mm)
C
Thickness(mm)
D
Aperture(mm)
E
Hole Center Distance(mm)
Weight(g)Inductance
AL(nH/N²)
MBN-43-24028507.0±0.256.2±0.254.2-0.251.7±0.22.9±0.10.51275
MBN-43-30285013.3±0.610.3±0.37.5±0.353.8±0.255.7±0.252.61280
MBN-43-20285013.3±0.614.35±0.57.5±0.353.8±0.255.7±0.253.72890
MBN-43-1040285019.45±0.412.7±0.59.5±0.254.75±0.29.9±0.257.52700
MBN-43-331285019.45±0.425.4±0.79.5±0.254.75±0.29.9±0.25185400
MBN-43-705185028.7±0.628.7±0.714.25±0.36.35±0.1514.0±0.3486000
MBN-61-24021257.0±0.256.2±0.254.2-0.251.7±0.22.9±0.10.5150
MBN-61-30212513.3±0.610.3±0.37.5±0.353.8±0.255.7±0.252.6320Min
MBN-61-20212513.3±0.614.35±0.57.5±0.353.8±0.255.7±0.253.7425
MBN-61-150212513.3±0.66.6±0.257.5±0.353.8±0.255.7±0.251.7/
MBN-61-10212513.3±0.613.4±0.67.5±0.353.8±0.255.7±0.253.5/
MBN-61-680212513.3±0.627.0±0.757.5±0.353.8±0.255.7±0.257/
MBN-61-00212530.2±0.628.7±0.715.0±0.46.8±0.214.0±0.346
MBN-73-240225007.0±0.256.2±0.254.2-0.251.7±0.22.9±0.10.53750
MBN-73-302250013.3±0.610.3±0.37.5±0.353.8±0.255.7±0.252.6/
MBN-73-202250013.3±0.614.35±0.57.5±0.353.8±0.255.7±0.253.78500
