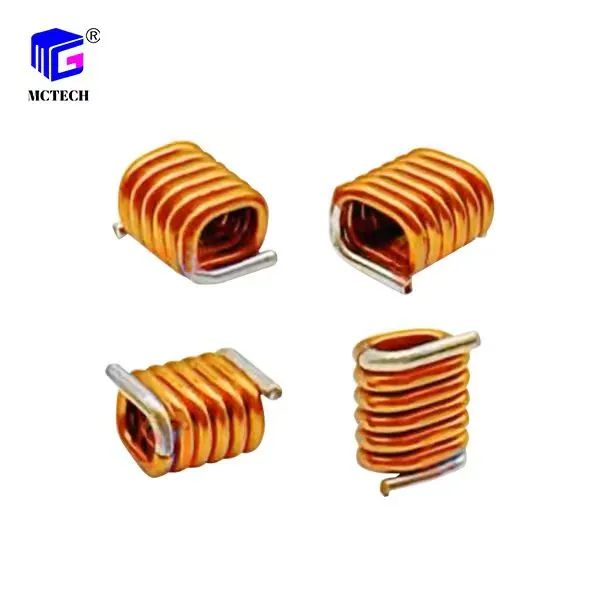

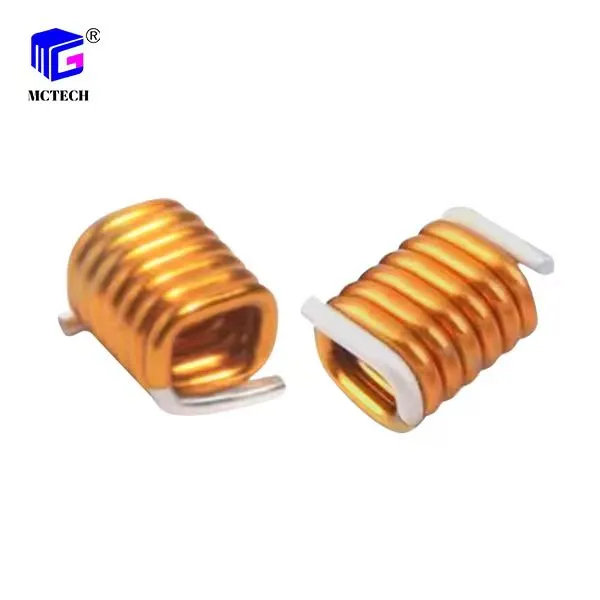

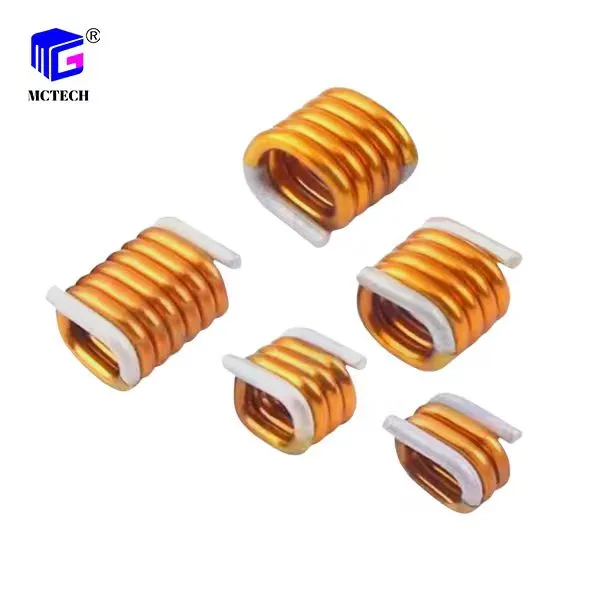

Inductor SQAC Series

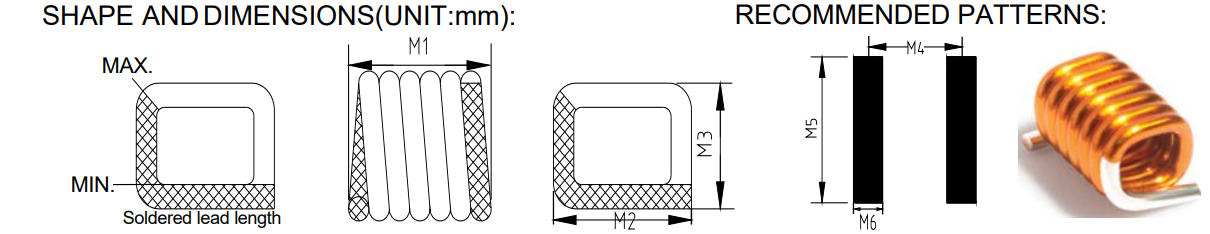

Part Number			M1		M2		M3			M4		M5		M6	Weight (mg)			Tape pocket Depth (mm)
SQAC0806-5N5J			1,346±0,102		1,829±0,254		1,397±0,102			962		26		51	99			142
SQAC0806-6N0J			1,295±0,102		1,829±0,254		1,397±0,102			102		26		51	85			142
SQAC0806-8N9J			1,626±0,152		1,829±0,254		1,397±0,102			132		26		051	108			155
SQAC0806-12NJ			1,930±0,152		1,829±0,254		1,397±0,102			163		26		51	136			152
SQAC0806-16NJ			2,286±0,152		1,829±0,254		1,397±0,102			196		26		51	161			150
SQAC0806-19NJ			2,591±0,152		1,829±0,254		1,397±0,102			229		26		51	187			155
SQAC0807-6N9J			1,295±0,102		1,829±0,254		1,524±0,254			102		26		51	91			160
SQAC0807-10NJ			1,626±0,152		1,829±0,254		1,524±0,254			132		26		51	115			157
SQAC0807-11NJ			1,549±0,152		1,829±0,254		1,524±0,254			124		26		51	115			155
SQAC0807-14NJ			1,930±0,152		1,829±0,254		1,524±0,254			163		26		51	140			160
SQAC0807-17NJ			2,286±0,152		1,829±0,254		1,524±0,254			196		26		51	168			168
SQAC0807-22NJ			2,591±0,152		1,829±0,254		1,524±0,254			229		26		51	194			168
SQAC0908-8N1J			1,473±0,152		2,134±0,152		1,829±0,203			112		28		64	128			201
SQAC0908-12NJ			1854±0,152		2,134±0,152		1,829±0,203			145		28		64	169			196
SQAC0908-14NJ			1,549±0,152		2,134±0,152		1,829±0,203			124		28		64	135			152
SQAC0908-17NJ			2210±0,152		2,134±0,152		1,829±0,203			183		28		64	211			201
SQAC0908-22NJ			2,565±0,152		2,134±0,152		1,829±0,203			218		28		64	247			198
SQAC0908-23NJ			2,235±0,152		2,134±0,152		1,829±0,203			190		28		64	192			198
SQAC0908-25NJ			2,972±0,152		2,134±0,155		1.829±0.206			257		28		64	276			201
SQAC0908-27NJ			2,972±0,152		2,134±0,152		1,829±0,203			257		28		64	287			201

Electrical Characteristics @25℃:

Part number				Inductance (nH)		tol		Q typ			SRF typ (GHz)		DCR max (mOhm)		Irms (A)
SQAC0806-5N5J				5.5		±5%		60			4.9		3.4		2.9
SQAC0806-6N0J				6.0		±5%		64			5.2		6.0		2.9
SQAC0806-8N9J				8.9		±5%		90			4.3		7.0		2.9
SQAC0806-12NJ				12.3		±5%		90			4.8		8.0		2.9
SQAC0806-16NJ				15.7		±5%		90			4.4		9.0		2.9
SQAC0806-19NJ				19.4		±5%		90			4.0		10.0		2.9
SQAC0807-6N9J				6.9		±5%		100			4.6		6.0		2.7
SQAC0807-10NJ				10.2		±5%		100			4.0		7.0		2.7
SQAC0807-11NJ				11.2		±5%		90			3.6		6.3		2.7
SQAC0807-14NJ				13.7		±5%		100			4.3		8.0		2.7
SQAC0807-17NJ				17.0		±5%		100			4.0		9.0		2.7
SQAC0807-22NJ				22.0		±5%		100			3.5		10.0		2.7
SQAC0908-8N1J				8.1		±5%		130			5.2		6.0		4.4
SQAC0908-12NJ				12.1		±5%		130			4.3		7.0		4.4
SQAC0908-14NJ				14.7		±5%		90			3.0		7.2		4.4
SQAC0908-17NJ				16.6		±5%		130			3.4		8.0		4.4
SQAC0908-22NJ				21.5		±5%		130			3.7		9.0		4.4
SQAC0908-23NJ				23.0		±5%		120			2.6		10.0		4.4
SQAC0908-25NJ				25.0		±5%		130			2.5		10.0		4.4
SQAC0908-27NJ				27.3		±5%		130			3.2		10.0		4.4

※Inductance measured at 400 MHz, 0.1 Vrms, Q measured at 400 MHz

Explanation of part numbers

Part Number			M1		M2		M3			M4		M5		M6	Weight (mg)			Tape pocket Depth (mm)
SQAC0806-5N5J			1,346±0,102		1,829±0,254		1,397±0,102			962		26		51	99			142
SQAC0806-6N0J			1,295±0,102		1,829±0,254		1,397±0,102			102		26		51	85			142
SQAC0806-8N9J			1,626±0,152		1,829±0,254		1,397±0,102			132		26		051	108			155
SQAC0806-12NJ			1,930±0,152		1,829±0,254		1,397±0,102			163		26		51	136			152
SQAC0806-16NJ			2,286±0,152		1,829±0,254		1,397±0,102			196		26		51	161			150
SQAC0806-19NJ			2,591±0,152		1,829±0,254		1,397±0,102			229		26		51	187			155
SQAC0807-6N9J			1,295±0,102		1,829±0,254		1,524±0,254			102		26		51	91			160
SQAC0807-10NJ			1,626±0,152		1,829±0,254		1,524±0,254			132		26		51	115			157
SQAC0807-11NJ			1,549±0,152		1,829±0,254		1,524±0,254			124		26		51	115			155
SQAC0807-14NJ			1,930±0,152		1,829±0,254		1,524±0,254			163		26		51	140			160
SQAC0807-17NJ			2,286±0,152		1,829±0,254		1,524±0,254			196		26		51	168			168
SQAC0807-22NJ			2,591±0,152		1,829±0,254		1,524±0,254			229		26		51	194			168
SQAC0908-8N1J			1,473±0,152		2,134±0,152		1,829±0,203			112		28		64	128			201
SQAC0908-12NJ			1854±0,152		2,134±0,152		1,829±0,203			145		28		64	169			196
SQAC0908-14NJ			1,549±0,152		2,134±0,152		1,829±0,203			124		28		64	135			152
SQAC0908-17NJ			2210±0,152		2,134±0,152		1,829±0,203			183		28		64	211			201
SQAC0908-22NJ			2,565±0,152		2,134±0,152		1,829±0,203			218		28		64	247			198
SQAC0908-23NJ			2,235±0,152		2,134±0,152		1,829±0,203			190		28		64	192			198
SQAC0908-25NJ			2,972±0,152		2,134±0,155		1.829±0.206			257		28		64	276			201
SQAC0908-27NJ			2,972±0,152		2,134±0,152		1,829±0,203			257		28		64	287			201

Electrical Characteristics @25℃:

Part number				Inductance (nH)		tol		Q typ			SRF typ (GHz)		DCR max (mOhm)		Irms (A)
SQAC0806-5N5J				5.5		±5%		60			4.9		3.4		2.9
SQAC0806-6N0J				6.0		±5%		64			5.2		6.0		2.9
SQAC0806-8N9J				8.9		±5%		90			4.3		7.0		2.9
SQAC0806-12NJ				12.3		±5%		90			4.8		8.0		2.9
SQAC0806-16NJ				15.7		±5%		90			4.4		9.0		2.9
SQAC0806-19NJ				19.4		±5%		90			4.0		10.0		2.9
SQAC0807-6N9J				6.9		±5%		100			4.6		6.0		2.7
SQAC0807-10NJ				10.2		±5%		100			4.0		7.0		2.7
SQAC0807-11NJ				11.2		±5%		90			3.6		6.3		2.7
SQAC0807-14NJ				13.7		±5%		100			4.3		8.0		2.7
SQAC0807-17NJ				17.0		±5%		100			4.0		9.0		2.7
SQAC0807-22NJ				22.0		±5%		100			3.5		10.0		2.7
SQAC0908-8N1J				8.1		±5%		130			5.2		6.0		4.4
SQAC0908-12NJ				12.1		±5%		130			4.3		7.0		4.4
SQAC0908-14NJ				14.7		±5%		90			3.0		7.2		4.4
SQAC0908-17NJ				16.6		±5%		130			3.4		8.0		4.4
SQAC0908-22NJ				21.5		±5%		130			3.7		9.0		4.4
SQAC0908-23NJ				23.0		±5%		120			2.6		10.0		4.4
SQAC0908-25NJ				25.0		±5%		130			2.5		10.0		4.4
SQAC0908-27NJ				27.3		±5%		130			3.2		10.0		4.4

※Inductance measured at 400 MHz, 0.1 Vrms, Q measured at 400 MHz
