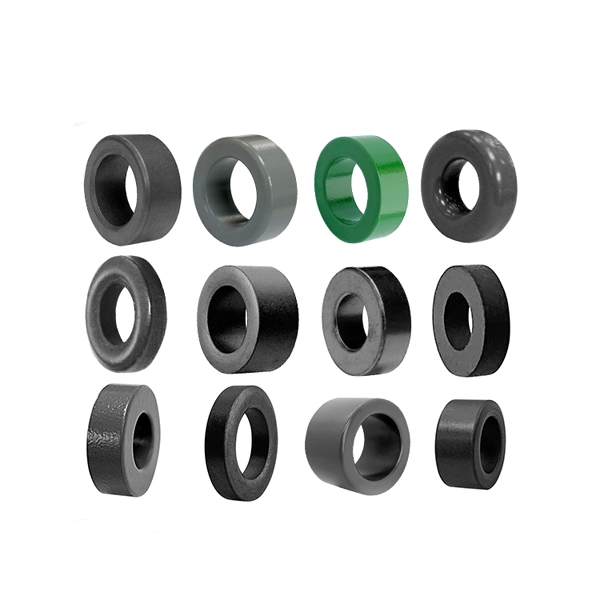

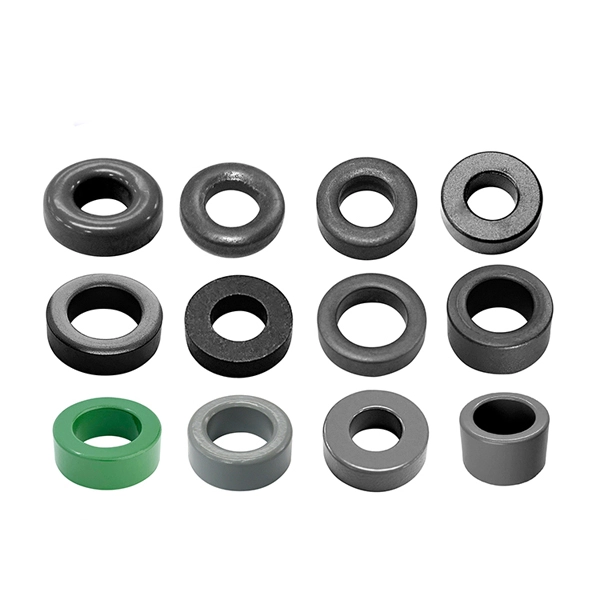

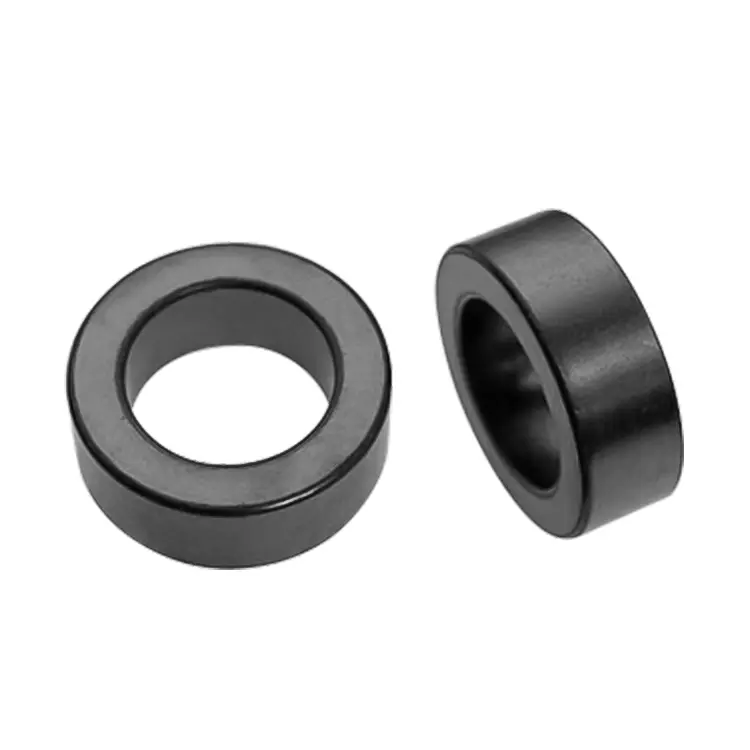

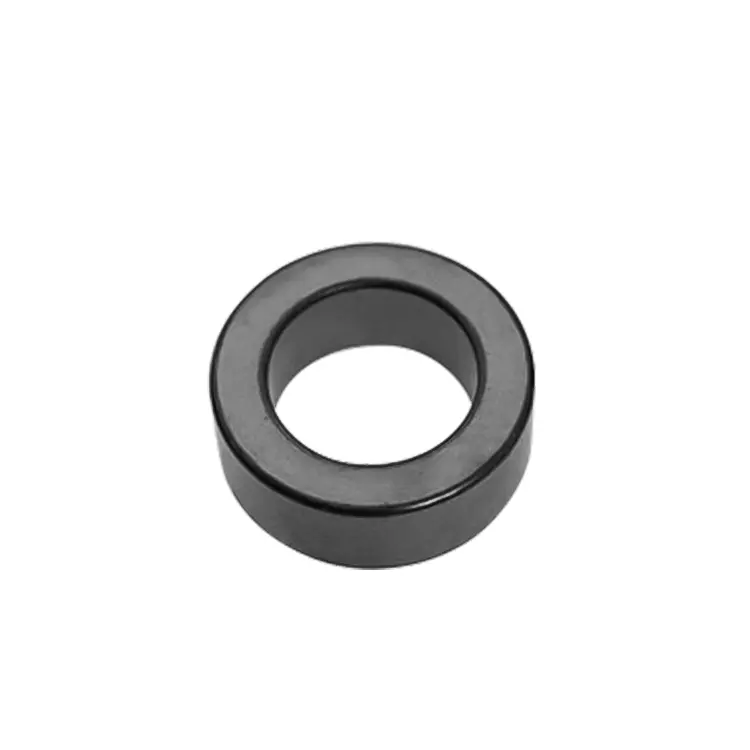

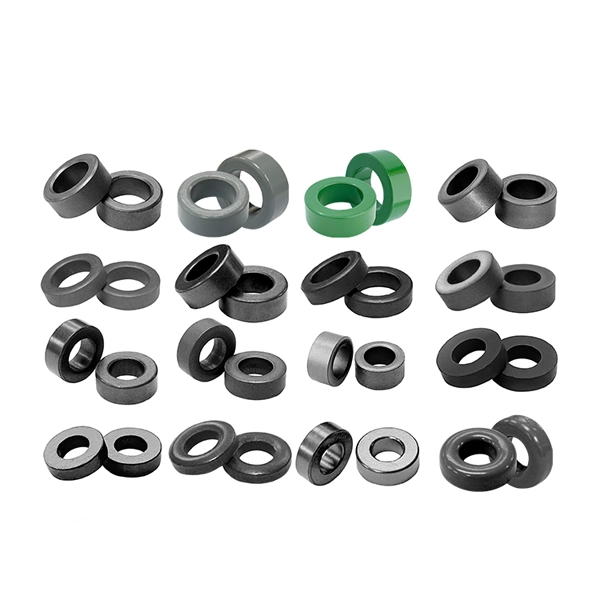

Ferrite Toroids

Product Model: MFT-23-43
MFT: Model code
23: Size code (in inches)
43: Material number

As one of the reputable magnetic core manufacturers, we provide the high-quality electronic component wholesale to meet customers' needs.

Material Properties

Material: Ferrite							AL value test condition: nH/N² @10KHz
Material Number:	43	4A3	52	61	67	68	75	77	F	H	J	K	W
Permeability / µi	800	800	250	125	40	20	5000	2000	3000	15000	5000	290	10000
AL Tolerance (%)	±25%	±25%	±25%	±25%	±25%	±25%	±25%	±25%	±25%	±30%	±25%	±25%	±30%

Material Information

43&4A3 Material Toroids: The Material ferrite toroid core is used for EMI/RFI suppression in the 20 MHz to 250 MHz range
52 Material Toroids: The 52 Material ferrite toroid core which is made of a new NiZn Ferrite material, combines a high saturation flux density and a high Curie temperature. It is used for EMI/RFI suppression in the 200 MHz to 1 GHz range.
61 Material Toroids: The 61 Material ferrite toroid core is designed for inductive applications up to 25mhz and also suppresses noise frequencies from 200MHz to 1000 MHz.
67 Material Toroids: The 67 Material ferrite toroid core is for high Q inductors up to 50 MHz. Suppresses frequencies above 1000 MHz.
68 Material Toroids: The 68 Material ferrite toroid core is non-standard and only in stock on a few sizes. High Q up to 100 MHz.
75 Material Toroids: The 75 Material ferrite toroid core attenuates extremely well between 0.5 MHz and 20 MHz.
77 Material Toroids: The 77 Material ferrite toroid core is used in the form of ferrite toroidal coils for transformers, inductors and RF interference suppression.
F Material Toroids: The F Material ferrite toroid core has a high saturation flux density at high temperatures. Application of power conversion transformer. Good noise suppression between 0.5 and 20mhz.
H Material Toroids: Production of the H Material ferrite toroid core has been discontinued and limited quantities are available.
J Material Toroids: The J Material ferrite toroid core has low volume resistivity and low core loss in the range of 1 KHz to 1 MHz. For pulse transformers and low level broadband transformers. Excellent frequency attenuation, from 0.5 MHz to 20 MHz.
K Material Toroids: The K Material ferrite toroid core is mainly used for transmission line transformers from 1 MHz to 50 MHz.
W Material Toroids: The W Material ferrite toroid core is a high permeability material used for frequency attenuation from 100 KHz to 1MHz in EMI/RFI filters.

Electrical characteristics

Dimensions	Outer Diameter OD(inch)	The Inside Diameter of ID(inch)	High HT(inch)	Inductance Coefficient AL Value(nH/N²)	Whether to Coat/Coating Color
MFT-23-43	0.23	0.12	0.06	15.8
MFT-37-43	0.375	0.187	0.125	35
MFT-50-43	0.5	0.281	0.188	44
MFT-50A-43	0.5	0.312	0.25	48
MFT-50A-43C	0.529	0.283	0.28	48	Yes
MFT-50B-43	0.5	0.312	0.5	96.5
MFT-63A-43	0.63	0.378	0.25	52
MFT-82-43	0.825	0.52	0.25	47
MFT-82A-43	0.825	0.52	0.468	88.5
MFT-87-43	0.87	0.54	0.25	48.5
MFT-87A-43	0.87	0.54	0.5	97
MFT-87A-43C	0.87	0.54	0.5	97	Yes
MFT-100-43	1	0.61	0.25	50
MFT-100A-43	1	0.61	0.32	64.5
MFT-100B-43	1	0.61	0.5	100
MFT-114-43	1.142	0.748	0.295	51
MFT-114A-43	1.142	0.748	0.545	95
MFT-125-43	1.25	0.75	0.375	77.5
MFT-140-43	1.4	0.9	0.5	88.5
MFT-140-43C/W	1.41	0.9	0.5	88.5	Yes/White
MFT-240-43	2.4	1.4	0.5	107.5
MFT-290-43	2.9	1.53	0.5	130
MFT-50-4A3	0.5	0.281	0.188	44
MFT-240-52	2.4	1.4	0.05	32.5
MFT-16-61	0.155	0.088	0.05	1.5
MFT-23-61	0.23	0.12	0.06	2.5
MFT-37-61	0.375	0.187	0.125	5.5
MFT-50-61	0.5	0.281	0.188	6.9
MFT-50-61C	0.51	0.271	0.198	6.9	Yes/White
MFT-50A-61	0.5	0.312	0.25	7.5
MFT-50B-61	0.5	0.312	0.5	15
MFT-63A-61	0.63	0.378	0.25	8
MFT-82-61	0.825	0.52	0.25	7.5
MFT-82A-61	0.825	0.52	0.468	13.5
MFT-87-61	0.87	0.54	0.25	7.5
MFT-114-61	1.142	0.748	0.295	8
MFT-114A-61	1.142	0.748	0.545	14.5
MFT-125-61	1.25	0.75	0.375	12
MFT-140-61	1.4	0.9	0.5	14
MFT-140-61C/G	1.41	0.89	0.51	14	Yes/Grey
MFT-240-61	2.4	1.4	0.5	17
MFT-350-61	3.5	2	0.5	17.8
MFT-450-61	4.5	2.5	0.5	To Be Determined.
MFT-23-67	0.23	0.12	0.06	0.6
MFT-37-67	0.375	0.187	0.125	1.8
MFT-5O-67	0.5	0.281	0.188	2.2
MFT-50A-67	0.5	0.312	0.25	2.4
MFT-50B-67	0.5	0.312	0.5	4.8
MFT-82-67	0.825	0.516	0.25	2.4
MFT-87-67	0.87	0.54	0.25	2.5
MFT-100A-67	1	0.61	0.32	3.2
MFT-114-67	1.142	0.748	0.295	2.5
MFT-114A-67	1.142	0.748	0.545	4.7±35%
MFT-125-67	1.25	0.75	0.375	3.9
MFT-140-67	1.4	0.9	0.5	4.5
MFT-240-67	2.4	1.4	0.5	5.5
MFT-350-67	3.5	2	0.5	55±20%
MFT-50-68	0.5	0.281	0.188	8.8
MFT-50A-68	0.5	0.312	0.25	9
MFT-82-68	0.82	0.52	0.25	9
MFT-140-68	1.4	0.906	0.5	12.5_-0^+30%
MFT-240-68	2.402	1.4	0.5	22
MFT-23-75	0.23	0.12	0.06	58.5
MFT-37-75	0.375	0.187	0.125	220
MFT-37-75C	0.38	0.18	0.13	220	Yes/White
MFT-50-75	0.5	0.281	0.188	272.5
MFT-50A-75	0.5	0.312	0.25	300
MFT-50B-75	0.5	0.312	0.5	600
MFT-82-75	0.825	0.52	0.25	295
MFT-87A-75	0.87	0.54	0.5	610
MFT-100A-75	1	0.61	0.32	400
MFT-140-75	1.4	0.9	0.5	550
MFT-290-75	2.9	1.53	0.5	810
MFT-23-77	0.23	0.12	0.06	42
MFT-23A-77	0.23	0.12	0.12	85
MFT-37-77	0.375	0.187	0.125	94.5
MFT-37-77C	0.38	0.18	0.13	94.5	Yes/White
MFT-50-77	0.5	0.281	0.188	118
MFT-50-77C	0.5	0.28	0.19	118	Yes/White
MFT-50A-77	0.5	0.312	0.25	130
MFT-5OB-77	0.5	0.312	0.5	259.5
MFT-63-77	0.63	0.378	0.182	101.5	Non-standard Parts
MFT-63A-77	0.63	0.378	0.25	140
MFT-82-77	0.825	0.52	0.25	127
MFT-82A-77	0.825	0.52	0.468	237.5
MFT-100A-77	1	0.61	0.32	173
MFT-114-77	1.142	0.748	0.295	136.5
MFT-114-77C	1.187	0.709	0.324	136.5	Yes/White
MFT-114A-77	1.142	0.748	0.545	252
MFT-125-77	1.25	0.75	0.375	209
MFT-140-77	1.4	0.9	0.5	254.5
MFT-240-77	2.4	1.4	0.5	315.5
MFT-290-77	2.9	1.53	0.5	350
MFT-23-F	0.23	0.12	0.06	58.5
MFT-87A-F	0.87	0.54	0.5	362.4
MFT-114-F	1.142	0.748	0.295	190.2
MFT-114-FC	1.142	0.748	0.295	190.2	Yes
MFT-140A-F	1.4	0.906	0.59	404
MFT-140B-F	1.4	0.906	0.394	272.6
MFT-150-FC	1.5	0.75	0.25	264	Yes
MFT-150A-F	1.5	0.75	0.5	502
MFT-193A-F	1.932	1.252	0.75	446
MFT-240-F	2.4	1.4	0.5	410.7
MFT-240-FC	2.4	1.4	0.5	410.7	Yes
MFT-290-F	2.9	1.53	0.5	448±20%
MFT-37-H	0.375	0.187	0.125	650
MFT-23-J	0.23	0.12	0.06	98
MFT-37-J	0.375	0.187	0.125	219.6
MFT-37-JC	0.4	0.18	0.15	219.6	Yes
MFT-50-J	0.5	0.281	0.188	281.5
MFT-50A-J	0.5	0.312	0.25	296.8
MFT-87-J	0.87	0.54	0.25	302
MFT-87A-J	0.87	0.54	0.5	604
MFT-114-J	1.142	0.748	0.295	317
MFT-140A-J	1.4	0.906	0.59	673.6
MFT-140A-JC	1.41	0.9	0.6	673.6	Yes
MFT-150-J	1.5	0.75	0.25	440
MFT-150A-J	1.5	0.8	0.5	836.5
MFT-193-J	1.932	1.252	0.625	606.5
MFT-193A-JC	1.932	1.252	0.75	743.5	Yes
MFT-240-J	2.4	1.4	0.5	684.5
MFT-290-J	2.9	1.53	0.5	814
MFT-337-J	3.375	2.187	0.5	552
MFT-150A-K	1.5	0.75	0.5	53
MFT-240-K	2.35	1.37	0.5	45.8
MFT-23-W	0.25	0.12	0.06	198.2
MFT-30-WC	0.31	0.13	0.19	835	Yes
MFT-37-WC	0.375	0.187	0.125	439.2	Yes
MFT-37-WY	0.375	0.187	0.125	439.2	Yes/Paliling
MFT-5O-W	0.5	0.281	0.188	543
MFT-50A-W	0.5	0.312	0.25	593.6
MFT-87-W	0.87	0.54	0.25	604
MFT-87A-W	0.87	0.54	0.5	1208
MFT-87B-W	0.87	0.54	0.312	740
MFT-140A-W	1.417	0.906	0.59	1340
MFT-150A-W	1.5	0.75	0.5	1670
MFT-193-W	1.932	1.252	0.625	To Be Determined.	Yes
CMFT-240-W	2.4	1.4	0.5	1369
MFT-290-W	2.9	1.53	0.5	1682
MFT-337-WC	3.37	2.135	0.5	1104	Yes
