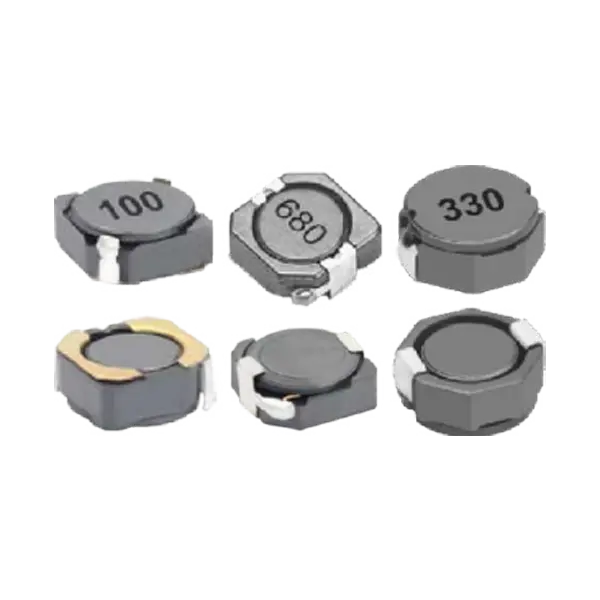

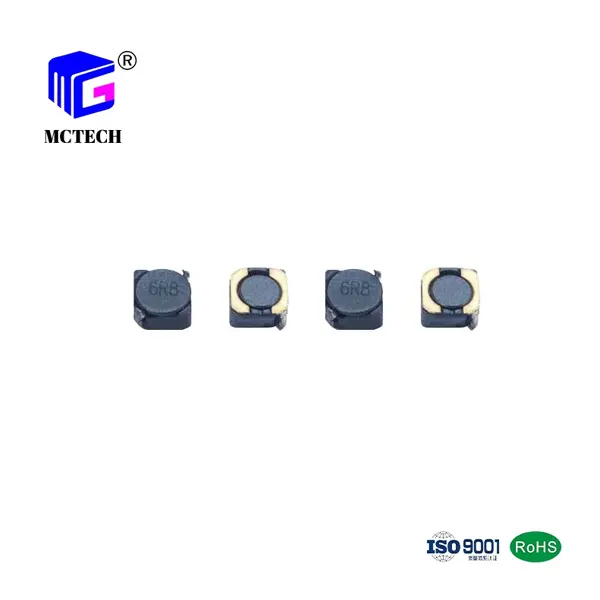

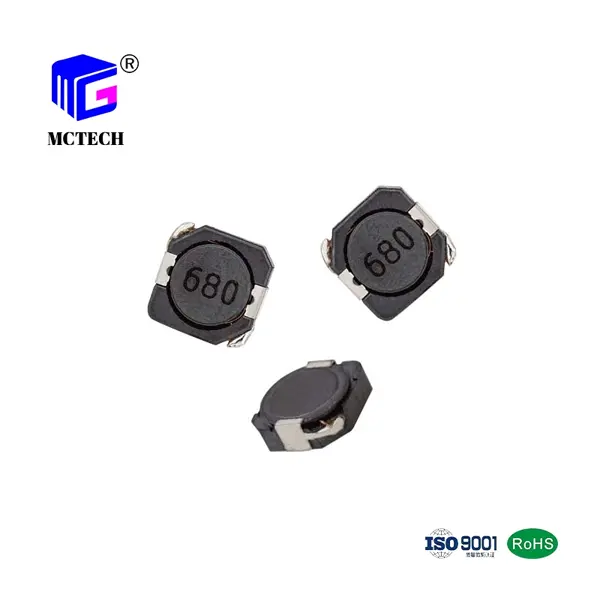

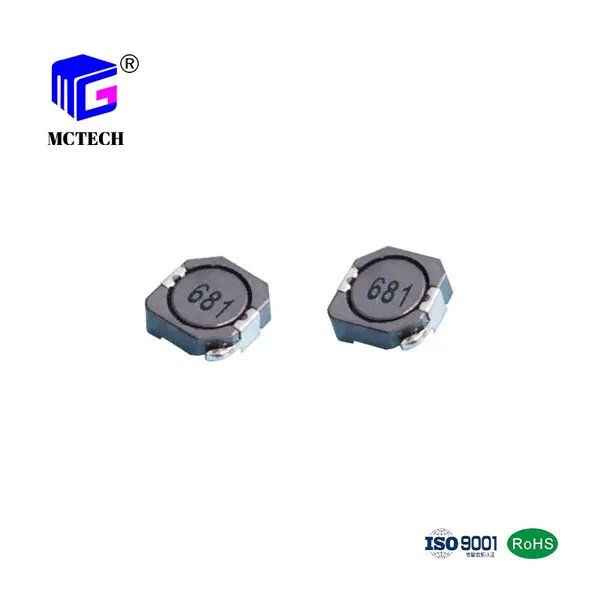

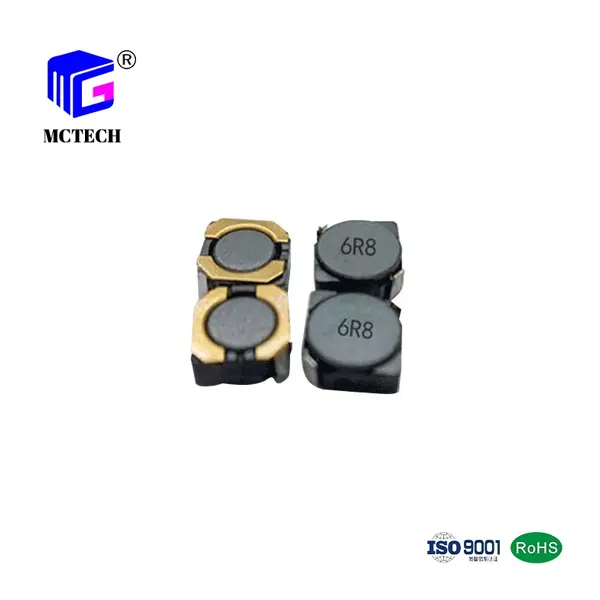

Features:
Low DCR, high rated current.
Low profile, magnetic shielded structure.
Lead free product, RoHS compliant.

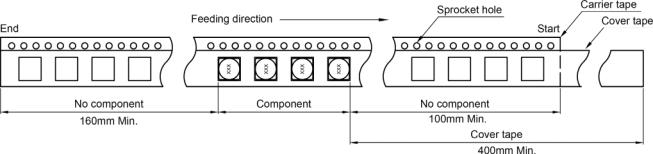

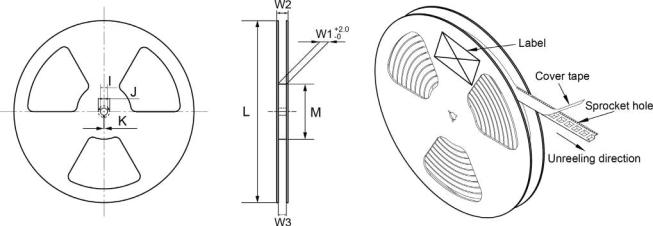

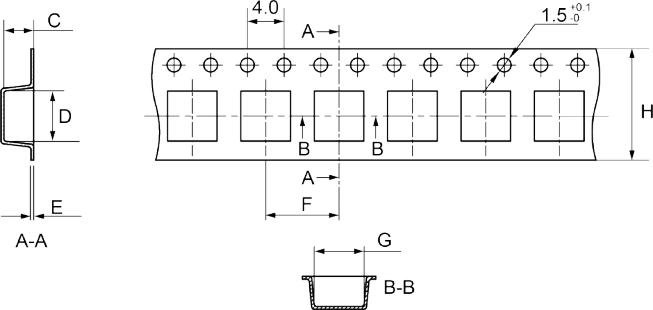

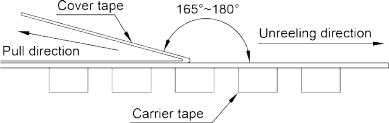

Carrier tape packing, suitable for SMT process.
Widely used in buck converter, laptop, displayer, network communication equipment, and etc.
Operating temperature: -40℃ ~+125℃ (Including coil's temperature rise).
As a trusted inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

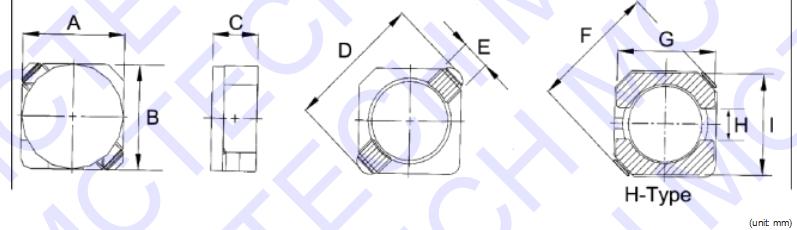

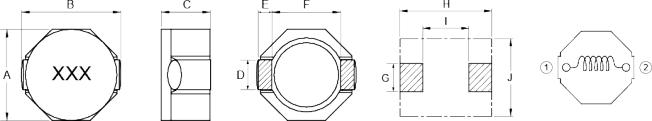

Series | A | B | C | D | E | F | G | H | I |
ASRH2D11 | 3.0±0.2 | 3.0±0.2 | 1.1±0.2 | 4.5 | 1.0 | 4.5 | 3.0 | 1.0 | 3.0 |
ASRH2D14 | 3.0±0.2 | 3.0±0.2 | 1.4±0.2 | 4.5 | 1.0 | 4.5 | 3.0 | 1.0 | 3.0 |
ASRH2D18 | 3.0±0.2 | 3.0±0.2 | 1.8±0.2 | 4.5 | 1.0 | 4.5 | 3.0 | 1.0 | 3.0 |
ASRH3D16 | 3.8±0.2 | 3.8±0.2 | 1.6±0.2 | 5.2 | 1.1 | 5.2 | 3.8±0.1 | 1.2 | 3.8±0.1 |
ASRH3D28 | 3.8±0.2 | 3.8±0.2 | 2.8±0.2 | 5.2 | 1.1 | 5.2 | 3.8±0.1 | 1.2 | 3.8±0.1 |
Electrical characteristics:

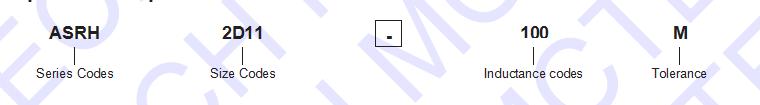

Part Number | Inductance | DCR Max | Rated Current | |
(μh) | (Ω) | (A) | ||
ASRH2D11-1R0M | 1 | 0.068 | 0.9 | |
ASRH2D11-1R5M | 1.5 | 0.07 | 0.85 | |
ASRH2D11-2R2M | 2.2 | 0.098 | 0.78 | |
ASRH2D11-3R3M | 3.3 | 0.123 | 0.6 | |
ASRH2D11-3R9M | 3.9 | 0.148 | 0.55 | |
ASRH2D11-4R7M | 4.7 | 0.17 | 0.5 | |
ASRH2D11-5R6M | 5.6 | 0.245 | 0.46 | |
ASRH2D11-6R8M | 6.8 | 0.26 | 0.44 | |
ASRH2D11-8R2M | 8.2 | 0.38 | 0.38 | |
ASRH2D11-100M | 10 | 0.4 | 0.35 | |
ASRH2D11-120M | 12 | 0.52 | 0.2 | |
ASRH2D11-150M | 15 | 0.55 | 0.19 | |
ASRH2D11-220M | 22 | 0.782 | 0.18 | |
ASRH2D11-330M | 33 | 1.2 | 0.16 | |
ASRH2D11-390M | 39 | 1.23 | 0.14 | |
ASRH2D11-470M | 47 | 1.25 | 0.1 | |
ASRH2D14-1R8M | 1.8 | 0.75 | 1.15 | |
ASRH2D14-2R2M | 2.2 | 0.95 | 1.1 | |
ASRH2D14-3R3M | 3.3 | 0.125 | 1 | |
ASRH2D14-4R7M | 4.7 | 0.175 | 0.9 | |
ASRH2D14-5R6M | 5.6 | 0.206 | 0.85 | |
ASRH2D14-6R8M | 6.8 | 0.213 | 0.83 | |
ASRH2D14-8R2M | 8.2 | 0.286 | 0.78 | |
ASRH2D14-100M | 10 | 0.37 | 0.65 | |
ASRH2D14-120M | 12 | 0.415 | 0.6 | |
ASRH2D14-150M | 15 | 0.445 | 0.55 | |
ASRH2D14-180M | 18 | 0.625 | 0.51 | |
ASRH2D14-220M | 22 | 0.795 | 0.42 | |
ASRH2D14-270M | 27 | 0.895 | 0.4 | |
ASRH2D18-1R2M | 1.2 | 0.05 | 0.8 | |
ASRH2D18-2R2M | 2.2 | 0.078 | 0.78 | |
ASRH2D18-2R7M | 2.7 | 0.08 | 0.76 | |
ASRH2D18-3R3M | 3.3 | 0.082 | 0.75 | |
ASRH2D18-4R7M | 4.7 | 0.098 | 0.63 | |
ASRH2D18-6R8M | 6.8 | 0.125 | 0.52 | |
ASRH2D18-100M | 10 | 0.18 | 0.43 | |
ASRH2D18-150M | 15 | 0.25 | 0.35 | |
ASRH2D18-220M | 22 | 0.32 | 0.3 | |
ASRH2D18-330M | 33 | 0.46 | 0.24 | |
ASRH2D18-470M | 47 | 0.66 | 0.2 | |
ASRH2D18-680M | 68 | 1.8 | 0.18 |
Part Number | Inductance | DCR Max | Rated Current | |
(μh) | (Ω) | (A) | ||
ASRH3D16-1R0M | 1 | 0.048 | 1.55 | |
ASRH3D16-1R5M | 1.5 | 0.05 | 1.45 | |
ASRH3D16-2R2M | 2.2 | 0.071 | 1.2 | |
ASRH3D16-3R3M | 3.3 | 0.085 | 1.1 | |
ASRH3D16-3R6M | 3.6 | 0.095 | 1 | |
ASRH3D16-4R3M | 4.3 | 0.103 | 0.92 | |
ASRH3D16-4R7M | 4.7 | 0.105 | 0.82 | |
ASRH3D16-5R1M | 5.1 | 0.13 | 0.8 | |
ASRH3D16-5R6M | 5.6 | 0.145 | 0.73 | |
ASRH3D16-6R8M | 6.8 | 0.162 | 0.7 | |
ASRH3D16-8R2M | 8.2 | 0.18 | 0.55 | |
ASRH3D16-100M | 10 | 0.21 | 0.48 | |
ASRH3D16-120M | 12 | 0.27 | 0.45 | |
ASRH3D16-150M | 15 | 0.29 | 0.42 | |
ASRH3D16-180M | 18 | 0.41 | 0.4 | |
ASRH3D16-220M | 22 | 0.43 | 0.32 | |
ASRH3D16-270M | 27 | 0.45 | 0.3 | |
ASRH3D16-330M | 33 | 0.67 | 0.28 | |
ASRH3D16-390M | 39 | 0.95 | 0.26 | |
ASRH3D16-470M | 47 | 1.175 | 0.24 | |
ASRH3D16-820M | 82 | 1.8 | 0.18 | |
ASRH3D16-101M | 100 | 2 | 0.15 | |
ASRH3D28-2R2M | 2.2 | 0.048 | 1.9 | |
ASRH3D28-4R7M | 4.7 | 0.086 | 1.2 | |
ASRH3D28-6R8M | 6.8 | 0.11 | 1.1 | |
ASRH3D28-100M | 10 | 0.145 | 0.85 | |
ASRH3D28-220M | 22 | 0.23 | 0.65 | |
ASRH3D28-330M | 33 | 0.24 | 0.28 | |
ASRH3D28-390M | 39 | 0.26 | 0.25 | |
ASRH3D28-470M | 47 | 0.375 | 0.23 | |
ASRH3D28-560M | 56 | 0.385 | 0.2 | |
ASRH3D28-101M | 100 | 0.628 | 0.19 | |
ASRH3D28-221M | 220 | 1.37 | 0.18 |

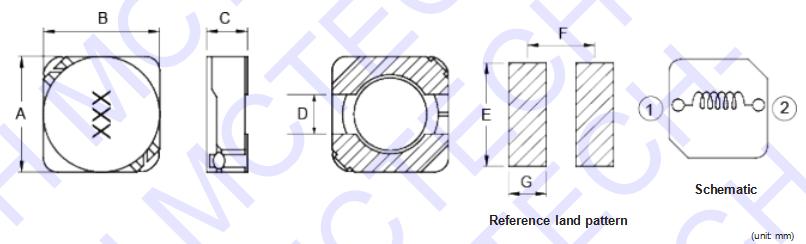

Shape & Dimension:
Series | A | B | C | D | E | F | G |
ASRH4D18 | 4.7±0.3 | 4.7±0.3 | 1.8±0.2 | 1.6 | 5.3 | 3.4 | 1.9 |
ASRH4D28 | 4.7±0.3 | 4.7±0.3 | 2.8±0.4 | 1.6 | 5.3 | 3.4 | 1.9 |
ASRH5D18 | 5.7±0.5 | 5.7±0.5 | 1.8±0.2 | 2 | 6.3 | 4.15 | 2.15 |
ASRH5D28 | 5.7±0.5 | 5.7±0.5 | 2.8±0.2 | 2 | 6.3 | 4.15 | 2.15 |
ASRH6D28 | 6.8±0.5 | 6.8±0.5 | 2.8±0.4 | 2 | 7.3 | 4.65 | 2.65 |
ASRH6D38 | 6.8±0.5 | 6.8±0.5 | 3.8±0.4 | 2 | 7.3 | 4.65 | 2.65 |
Electrical characteristics:
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH4D18-1R2N | 1.2±30% | 24.7 | 29.6 | 3.00 | 2.83 | |
ASRH4D18-2R2N | 2.2±30% | 36.2 | 43.4 | 2.30 | 2.33 | |
ASRH4D18-3R0N | 3±30% | 47.0 | 56.4 | 2.00 | 2.05 | |
ASRH4D18-4R7N | 4.7±30% | 63.0 | 75.6 | 1.60 | 1.77 | |
ASRH4D18-6R8N | 6.8±30% | 100.0 | 120.0 | 1.30 | 1.40 | |
ASRH4D18-8R2N | 8.2±30% | 112.0 | 134.0 | 1.20 | 1.33 | |
ASRH4D18-100M | 10±20% | 130.0 | 156.0 | 1.15 | 1.23 | |
ASRH4D18-150M | 15±20% | 174.0 | 209.0 | 0.90 | 1.06 | |
ASRH4D18-220M | 22±20% | 279.0 | 335.0 | 0.75 | 0.84 | |
ASRH4D18-330M | 33±20% | 395.0 | 474.0 | 0.60 | 0.71 | |
ASRH4D18-470M | 47±20% | 600.0 | 720.0 | 0.50 | 0.57 | |
ASRH4D18-680M | 68±20% | 850.0 | 1020.0 | 0.42 | 0.48 | |
ASRH4D18-820M | 82±20% | 960.0 | 1152.0 | 0.38 | 0.45 | |
ASRH4D18-101M | 100±20% | 1320.0 | 1584.0 | 0.34 | 0.39 | |
ASRH4D18-151M | 150±20% | 1640.0 | 1968.0 | 0.29 | 0.35 | |
ASRH4D18-221M | 220±20% | 2640.0 | 3168.0 | 0.24 | 0.27 |
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH4D28-1R0N | 1±30% | 16 | 19.2 | 3.75 | 3.61 | |
ASRH4D28-2R2N | 2.2±30% | 20 | 24 | 2.9 | 3.23 | |
ASRH4D28-3R3N | 3.3±30% | 29.5 | 35.4 | 2.35 | 2.66 | |
ASRH4D28-4R7N | 4.7±30% | 44 | 52.8 | 1.95 | 2.18 | |
ASRH4D28-6R8N | 6.8±30% | 49.2 | 59 | 1.65 | 2.06 | |
ASRH4D28-8R2N | 8.2±30% | 66.8 | 80.2 | 1.5 | 1.77 | |
ASRH4D28-100M | 10±20% | 76 | 91.2 | 1.3 | 1.66 | |
ASRH4D28-150M | 15±20% | 116 | 139 | 1 | 1.34 | |
ASRH4D28-220M | 22±20% | 147 | 176 | 0.85 | 1.19 | |
ASRH4D28-330M | 33±20% | 235 | 282 | 0.72 | 0.94 | |
ASRH4D28-470M | 47±20% | 318 | 382 | 0.6 | 0.81 | |
ASRH4D28-680M | 68±20% | 497 | 596 | 0.52 | 0.65 | |
ASRH4D28-820M | 82±20% | 558 | 670 | 0.46 | 0.61 | |
ASRH4D28-101M | 100±20% | 628 | 754 | 0.4 | 0.58 | |
ASRH4D28-151M | 150±20% | 1,120 | 1,344 | 0.33 | 0.43 | |
ASRH4D28-221M | 220±20% | 1,590 | 1,908 | 0.28 | 0.36 | |
ASRH4D28-331M | 330±20% | 2,520 | 3,024 | 0.23 | 0.29 | |
ASRH5D18-1R0N | 1±30% | 18.8 | 22.6 | 3.7 | 3.26 | |
ASRH5D18-1R8N | 1.8±30% | 28.5 | 34.2 | 2.4 | 2.65 | |
ASRH5D18-3R3N | 3.3±30% | 38.5 | 46.2 | 1.9 | 2.28 | |
SRH5D18-4R7N | 4.7±30% | 56 | 67.2 | 1.65 | 1.89 | |
ASRH5D18-6R8N | 6.8±30% | 78 | 93.6 | 1.35 | 1.6 | |
ASRH5D18-8R2N | 8.2±30% | 85 | 102 | 1.25 | 1.53 | |
ASRH5D18-100M | 10±20% | 114 | 137 | 1.1 | 1.32 | |
ASRH5D18-150M | 15±20% | 147 | 176 | 0.95 | 1.17 | |
ASRH5D18-220M | 22±20% | 190 | 228 | 0.7 | 1.03 | |
ASRH5D18-330M | 33±20% | 285 | 342 | 0.6 | 0.84 | |
ASRH5D18-470M | 47±20% | 425 | 510 | 0.5 | 0.69 | |
ASRH5D18-680M | 68±20% | 620 | 744 | 0.43 | 0.57 | |
ASRH5D18-820M | 82±20% | 726 | 871 | 0.4 | 0.52 | |
ASRH5D18-101M | 100±20% | 908 | 1,090 | 0.35 | 0.47 | |
ASRH5D18-151M | 150±20% | 1,320 | 1,584 | 0.28 | 0.39 | |
ASRH5D18-221M | 220±20% | 1,700 | 2,040 | 0.22 | 0.34 | |
ASRH5D18-331M | 330±20% | 3,300 | 3,960 | 0.2 | 0.25 | |
ASRH5D28-1R2N | 1.2±30% | 15.3 | 18.4 | 3.6 | 3.84 | |
ASRH5D28-1R8N | 1.8±30% | 16.4 | 19.7 | 3.1 | 3.71 | |
ASRH5D28-3R3N | 3.3±30% | 23 | 27.6 | 2.3 | 3.13 | |
ASRH5D28-4R7N | 4.7±30% | 32 | 38.4 | 1.85 | 2.66 | |
ASRH5D28-6R8N | 6.8±30% | 45 | 54 | 1.55 | 2.24 | |
ASRH5D28-8R2N | 8.2±30% | 48.6 | 58.3 | 1.4 | 2.16 | |
ASRH5D28-100M | 10±20% | 67.5 | 81 | 1.25 | 1.83 | |
ASRH5D28-150M | 15±20% | 89 | 107 | 1.05 | 1.59 | |
ASRH5D28-220M | 22±20% | 120 | 144 | 0.85 | 1.37 | |
ASRH5D28-330M | 33±20% | 203 | 244 | 0.65 | 1.05 | |
ASRH5D28-470M | 47±20% | 240 | 288 | 0.8 | 0.97 | |
ASRH5D28-680M | 68±20% | 348 | 418 | 0.48 | 0.81 | |
ASRH5D28-820M | 82±20% | 395 | 474 | 0.44 | 0.76 | |
ASRH5D28-101M | 100±20% | 495 | 594 | 0.39 | 0.68 | |
ASRH5D28-151M | 150±20% | 800 | 960 | 0.32 | 0.53 | |
ASRH5D28-221M | 220±20% | 1,170 | 1,404 | 0.27 | 0.44 | |
ASRH5D28-331M | 330±20% | 1,700 | 2,040 | 0.22 | 0.36 | |
ASRH5D28-471M | 470±20% | 2,400 | 2,880 | 0.18 | 0.31 |
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH6D28-1R0N | 1±30% | 12.3 | 14.8 | 6 | 4.86 | |
ASRH6D28-2R2N | 2.2±30% | 16.8 | 20.2 | 3.8 | 4.16 | |
ASRH6D28-3R3N | 3.3±30% | 21.6 | 25.9 | 3.1 | 3.67 | |
ASRH6D28-4R7N | 4.7±30% | 28.7 | 34.4 | 2.6 | 3.18 | |
ASRH6D28-6R8N | 6.8±30% | 40 | 48 | 2.15 | 2.7 | |
ASRH6D28-8R2N | 8.2±30% | 45 | 54 | 2 | 2.54 | |
ASRH6D28-100M | 10±20% | 56 | 67.2 | 1.85 | 2.28 | |
ASRH6D28-120M | 12±20% | 67.5 | 81 | 1.65 | 2.08 | |
ASRH6D28-150M | 15±20% | 76 | 91.2 | 1.4 | 1.96 | |
ASRH6D28-220M | 22±20% | 116 | 139 | 1.2 | 1.58 | |
ASRH6D28-270M | 27±20% | 145 | 174 | 1.1 | 1.42 | |
ASRH6D28-330M | 33±20% | 167 | 200 | 1 | 1.32 | |
ASRH6D28-470M | 47±20% | 240 | 288 | 0.8 | 1.1 | |
ASRH6D28-560M | 56±20% | 260 | 312 | 0.75 | 1.06 | |
ASRH6D28-680M | 68±20% | 300 | 360 | 0.7 | 0.98 | |
ASRH6D28-820M | 82±20% | 374 | 449 | 0.63 | 0.88 | |
ASRH6D28-101M | 100±20% | 505 | 606 | 0.57 | 0.76 | |
ASRH6D28-151M | 150±20% | 650 | 780 | 0.46 | 0.67 | |
ASRH6D28-221M | 220±20% | 905 | 1,086 | 0.38 | 0.57 | |
ASRH6D28-271M | 270±20% | 1,250 | 1,500 | 0.35 | 0.48 | |
ASRH6D28-331M | 330±20% | 1,600 | 1,920 | 0.32 | 0.43 | |
ASRH6D28-471M | 470±20% | 2,335 | 2,802 | 0.26 | 0.35 | |
ASRH6D38-1R0N | 1±30% | 11 | 13.2 | 5.5 | 5.33 | |
ASRH6D38-2R2N | 2.2±30% | 14 | 16.8 | 4.9 | 4.73 | |
ASRH6D38-3R3N | 3.3±30% | 18 | 21.6 | 4.1 | 4.17 | |
ASRH6D38-4R7N | 4.7±30% | 23 | 27.6 | 3.7 | 3.69 | |
ASRH6D38-6R8N | 6.8±30% | 27 | 32.4 | 3 | 3.4 | |
ASRH6D38-8R2N | 8.2±30% | 36.7 | 44 | 2.55 | 2.92 | |
ASRH6D38-100M | 10±20% | 39 | 46.8 | 2.4 | 2.83 | |
ASRH6D38-120M | 12±20% | 48.7 | 58.4 | 2.2 | 2.53 | |
ASRH6D38-150M | 15±20% | 58.5 | 70.2 | 1.9 | 2.31 | |
ASRH6D38-220M | 22±20% | 86 | 103 | 1.65 | 1.91 | |
ASRH6D38-270M | 27±20% | 100 | 120 | 1.45 | 1.77 | |
ASRH6D38-330M | 33±20% | 112 | 134 | 1.35 | 1.67 | |
ASRH6D38-390M | 39±20% | 146 | 175 | 1.2 | 1.46 | |
ASRH6D38-470M | 47±20% | 156 | 187 | 1.1 | 1.42 | |
ASRH6D38-560M | 56±20% | 186 | 223 | 1 | 1.3 | |
ASRH6D38-680M | 68±20% | 240 | 288 | 0.9 | 1.14 | |
ASRH6D38-820M | 82±20% | 268 | 322 | 0.8 | 1.08 | |
ASRH6D38-101M | 100±20% | 348 | 418 | 0.75 | 0.95 | |
ASRH6D38-151M | 150±20% | 500 | 600 | 0.62 | 0.79 | |
ASRH6D38-221M | 220±20% | 675 | 810 | 0.51 | 0.68 | |
ASRH6D38-271M | 270±20% | 840 | 1,008 | 0.45 | 0.61 | |
ASRH6D38-331M | 330±20% | 1,065 | 1,278 | 0.42 | 0.54 | |
ASRH6D38-391M | 390±20% | 1,175 | 1,410 | 0.39 | 0.52 | |
ASRH6D38-471M | 470±20% | 1,700 | 2,040 | 0.35 | 0.43 | |
ASRH6D38-561M | 560±20% | 1,860 | 2,232 | 0.33 | 0.41 | |
ASRH6D38-681M | 680±20% | 2,470 | 2,964 | 0.29 | 0.36 | |
ASRH6D38-821M | 820±20% | 3,130 | 3,756 | 0.27 | 0.32 | |
ASRH6D38-102M | 1000±20% | 3,580 | 4,296 | 0.24 | 0.3 |

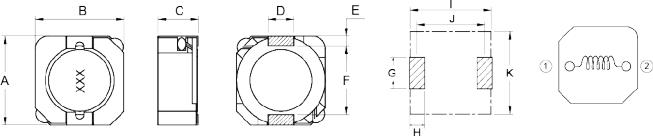

Series | A | B | C | D | E | F | G | H | I | J |
ASRH8D28 | 8.0±0.3 | 9.5±0.5 | 3.0±0.2 | 2.50 | 1.20 | 6.00 | 3.00 | 10.00 | 5.00 | 8.30 |
ASRH8D43 | 8.0±0.3 | 9.5±0.5 | 4.5±0.3 | 2.50 | 1.20 | 6.00 | 3.00 | 10.00 | 5.00 | 8.30 |
Electrical characteristics:
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH8D28-1R0N | 1±30% | 9.0 | 10.80 | 9.00 | 5.64 | |
ASRH8D28-2R2N | 2.2±30% | 14.0 | 16.80 | 6.00 | 4.52 | |
ASRH8D28-3R3N | 3.3±30% | 17.0 | 20.40 | 5.30 | 4.11 | |
ASRH8D28-4R7N | 4.7±30% | 26.0 | 31.20 | 4.00 | 3.32 | |
ASRH8D28-6R8N | 6.8±30% | 31.5 | 37.80 | 3.60 | 3.02 | |
ASRH8D28-8R2N | 8.2±30% | 41.0 | 49.20 | 3.20 | 2.64 | |
ASRH8D28-100M | 10±20% | 63.0 | 75.60 | 2.70 | 2.13 | |
ASRH8D28-150M | 15±20% | 84.0 | 101.00 | 2.35 | 1.85 | |
ASRH8D28-220M | 22±20% | 105.0 | 126.00 | 1.90 | 1.65 | |
ASRH8D28-330M | 33±20% | 176.0 | 211.00 | 1.50 | 1.28 | |
ASRH8D28-470M | 47±20% | 250.0 | 300.00 | 1.32 | 1.07 | |
ASRH8D28-680M | 68±20% | 343.0 | 412.00 | 1.10 | 0.91 | |
ASRH8D28-820M | 82±20% | 432.0 | 518.00 | 1.00 | 0.81 | |
ASRH8D28-101M | 100±20% | 524.0 | 629.00 | 0.90 | 0.74 | |
ASRH8D43-1R0N | 1±30% | 7.1 | 8.52 | 11.00 | 7.00 | |
ASRH8D43-2R2N | 2.2±30% | 10.8 | 13 | 7.50 | 5.67 | |
ASRH8D43-3R3N | 3.3±30% | 12.8 | 15.4 | 7.00 | 5.21 | |
ASRH8D43-4R7N | 4.7±30% | 23 | 27.6 | 5.40 | 3.89 | |
ASRH8D43-6R8N | 6.8±30% | 26 | 31.2 | 4.80 | 3.66 | |
ASRH8D43-8R2N | 8.2±30% | 33 | 39.6 | 4.40 | 3.24 | |
ASRH8D43-100M | 10±20% | 44 | 52.8 | 3.70 | 2.81 | |
ASRH8D43-150M | 15±20% | 55 | 66 | 3.20 | 2.51 | |
ASRH8D43-220M | 22±20% | 94 | 113 | 2.60 | 1.92 | |
ASRH8D43-330M | 33±20% | 116 | 139 | 2.15 | 1.73 | |
ASRH8D43-470M | 47±20% | 165 | 198 | 1.80 | 1.45 | |
ASRH8D43-680M | 68±20% | 266 | 319 | 1.45 | 1.14 | |
ASRH8D43-820M | 82±20% | 294 | 353 | 1.32 | 1.09 | |
ASRH8D43-101M | 100±20% | 385 | 462 | 1.23 | 0.95 | |
ASRH8D43-151M | 150±20% | 610 | 732 | 0.97 | 0.75 | |
ASRH8D43-221M | 220±20% | 815 | 978 | 0.83 | 0.65 | |
ASRH8D43-331M | 330±20% | 1180 | 1416 | 0.66 | 0.54 | |
ASRH8D43-471M | 470±20% | 1840 | 2208 | 0.56 | 0.43 | |
ASRH8D43-681M | 680±20% | 2660 | 3192 | 0.47 | 0.36 | |
ASRH8D43-821M | 820±20% | 2910 | 3492 | 0.43 | 0.35 | |
ASRH8D43-102M | 1000±20% | 4000 | 4800 | 0.38 | 0.29 |
Shape & Dimension:
Series | A | B | C | D | E | F | G | H | I | J | K |
ASRH10D30 | 10.4±0.5 | 10.2±0.3 | 2.8±0.3 | 3.0 | 1.2 | 7.7 | 4.0 | 2.0 | 10.9 | 9.0 | 10.5 |
ASRH10D40 | 10.4±0.5 | 10.2±0.3 | 3.8±0.3 | 3.0 | 1.2 | 7.7 | 4.0 | 2.0 | 10.9 | 9.0 | 10.5 |
ASRH10D50 | 10.4±0.5 | 10.2±0.3 | 4.8±0.3 | 3.0 | 1.2 | 7.7 | 4.0 | 2.0 | 10.9 | 9.0 | 10.5 |
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH10D30-1R2N | 1.2±30% | 7.61 | 9.13 | 6.3 | 7.2 | |
ASRH10D30-2R2N | 2.2±30% | 10.3 | 12.4 | 5.8 | 6.19 | |
ASRH10D30-2R2N | 3.3±30% | 12.8 | 15.4 | 4.85 | 5.55 | |
ASRH10D30-5R6N | 5.6±30% | 20 | 24 | 3.8 | 4.44 | |
ASRH10D30-6R8N | 6.8±30% | 23.8 | 28.6 | 3.2 | 4.07 | |
ASRH10D30-8R2N | 8.2±30% | 30 | 36 | 3 | 3.63 | |
ASRH10D30-100M | 10±20% | 35.5 | 42.6 | 2.8 | 3.33 | |
ASRH10D30-120M | 12±20% | 45.3 | 54.4 | 2.7 | 2.95 | |
ASRH10D30-150M | 15±20% | 49.8 | 59.8 | 2.2 | 2.82 | |
ASRH10D30-180M | 18±20% | 65 | 78 | 2.05 | 2.46 | |
ASRH10D30-220M | 22±20% | 75.3 | 90.4 | 2 | 2.29 | |
ASRH10D30-270M | 27±20% | 95 | 114 | 1.72 | 2.04 | |
ASRH10D30-330M | 33±20% | 114 | 137 | 1.61 | 1.86 | |
ASRH10D30-390M | 39±20% | 126 | 151 | 1.4 | 1.77 | |
ASRH10D30-470M | 47±20% | 140 | 168 | 1.3 | 1.68 | |
ASRH10D30-560M | 56±20% | 180 | 216 | 1.15 | 1.49 | |
ASRH10D30-680M | 68±20% | 208 | 250 | 1.05 | 1.38 | |
ASRH10D30-820M | 82±20% | 243 | 292 | 0.95 | 1.27 | |
ASRH10D30-101M | 100±20% | 300 | 360 | 0.85 | 1.15 | |
ASRH10D30-121M | 120±20% | 353 | 424 | 0.8 | 1.06 | |
ASRH10D30-151M | 150±20% | 450 | 540 | 0.75 | 0.94 | |
ASRH10D30-181M | 180±20% | 532 | 638 | 0.68 | 0.86 | |
ASRH10D30-271M | 220±20% | 610 | 732 | 0.62 | 0.8 | |
ASRH10D30-221M | 270±20% | 818 | 982 | 0.56 | 0.69 | |
ASRH10D30-331M | 330±20% | 936 | 1123 | 0.5 | 0.65 | |
ASRH10D30-391M | 390±20% | 1148 | 1378 | 0.47 | 0.59 | |
ASRH10D30-471M | 470±20% | 1440 | 1728 | 0.41 | 0.52 | |
ASRH10D30-561M | 560±20% | 1562 | 1874 | 0.35 | 0.5 | |
ASRH10D30-681M | 680±20% | 2110 | 2532 | 0.33 | 0.43 | |
ASRH10D30-821M | 820±20% | 2426 | 2911 | 0.32 | 0.4 | |
ASRH10D30-102M | 1000±20% | 2856 | 3427 | 0.31 | 0.37 |
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH10D40-1R2N | 1.2±30% | 8.3 | 10 | 13 | 7.31 | |
ASRH10D40-2R2N | 2.2±30% | 10.3 | 12.4 | 9.5 | 6.56 | |
ASRH10D40-3R3N | 3.3±30% | 13.8 | 16.6 | 8 | 5.67 | |
ASRH10D40-4R7N | 4.7±30% | 16 | 19.2 | 6.5 | 5.26 | |
ASRH10D40-5R6N | 5.6±30% | 21.8 | 26.2 | 6 | 4.51 | |
ASRH10D40-6R8N | 6.8±30% | 25.1 | 30.1 | 5.5 | 4.08 | |
ASRH10D40-100M | 10±20% | 28 | 33.6 | 4.46 | 3.95 | |
ASRH10D40-120M | 12±20% | 40.3 | 48.4 | 4 | 3.21 | |
ASRH10D40-150M | 15±20% | 43.4 | 52.1 | 3.7 | 2.87 | |
ASRH10D40-180M | 18±20% | 47.6 | 57.1 | 3.12 | 2.59 | |
ASRH10D40-220M | 22±20% | 68.4 | 82.1 | 2.95 | 2.39 | |
ASRH10D40-270M | 27±20% | 78.8 | 94.6 | 2.8 | 2.31 | |
ASRH10D40-330M | 33±20% | 107 | 128 | 2.6 | 2.07 | |
ASRH10D40-390M | 39±20% | 130 | 156 | 2.25 | 1.87 | |
ASRH10D40-470M | 47±20% | 145 | 174 | 1.98 | 1.81 | |
ASRH10D40-560M | 56±20% | 159 | 191 | 1.82 | 1.59 | |
ASRH10D40-680M | 68±20% | 215 | 258 | 1.65 | 1.52 | |
ASRH10D40-820M | 82±20% | 244 | 293 | 1.55 | 1.38 | |
ASRH10D40-101M | 100±20% | 299 | 359 | 1.53 | 1.26 | |
ASRH10D40-121M | 120±20% | 355 | 426 | 1.26 | 1.19 | |
ASRH10D40-151M | 150±20% | 410 | 492 | 1.22 | 1.07 | |
ASRH10D40-181M | 180±20% | 538 | 646 | 1.05 | 0.98 | |
ASRH10D40-221M | 220±20% | 595 | 714 | 0.9 | 0.88 | |
ASRH10D40-271M | 270±20% | 737 | 884 | 0.85 | 0.79 | |
ASRH10D40-331M | 330±20% | 910 | 1092 | 0.82 | 0.69 | |
ASRH10D40-391M | 390±20% | 1120 | 1344 | 0.66 | 0.66 | |
ASRH10D40-471M | 470±20% | 1230 | 1476 | 0.65 | 0.59 | |
ASRH10D40-561M | 560±20% | 1550 | 1860 | 0.57 | 0.56 | |
ASRH10D40-681M | 680±20% | 1750 | 2100 | 0.54 | 0.5 | |
ASRH10D40-821M | 820±20% | 2620 | 3144 | 0.48 | 0.42 | |
ASRH10D40-102M | 1000±20% | 2870 | 3444 | 0.45 | 0.4 |
Part No. | L(0A)(μh) | DCR (m Ω) | Isat(A) | Irms(A) | ||
Typ | Max | Typ | Typ | |||
ASRH10D50-1R2N | 1.2±30% | 7.1 | 8.52 | 13 | 8 | |
ASRH10D50-2R2N | 2.2±30% | 9.4 | 11.3 | 10 | 6.72 | |
ASRH10D50-3R3N | 3.3±30% | 12.5 | 15 | 8.5 | 6.01 | |
ASRH10D50-5R6N | 5.6±30% | 17 | 20.4 | 6.3 | 5.15 | |
ASRH10D50-6R8N | 6.8±30% | 19.5 | 23.4 | 5.5 | 4.81 | |
ASRH10D50-8R2N | 8.2±30% | 21 | 25.2 | 4.9 | 4.64 | |
ASRH10D50-100M | 10±20% | 25 | 30 | 4.5 | 4.25 | |
ASRH10D50-120M | 12±20% | 31 | 37.2 | 4.1 | 3.82 | |
ASRH10D50-150M | 15±20% | 35 | 42 | 3.7 | 3.5 | |
ASRH10D50-180M | 18±20% | 47 | 56.4 | 3.5 | 3.15 | |
ASRH10D50-220M | 22±20% | 55 | 66 | 3.1 | 2.86 | |
ASRH10D50-270M | 27±20% | 60 | 72 | 2.9 | 2.74 | |
ASRH10D50-330M | 33±20% | 70 | 84 | 2.4 | 2.54 | |
ASRH10D50-390M | 39±20% | 75 | 90 | 2.2 | 2.36 | |
ASRH10D50-470M | 47±20% | 100 | 120 | 2.1 | 2.13 | |
ASRH10D50-560M | 56±20% | 107 | 128 | 1.9 | 2.02 | |
ASRH10D50-680M | 68±20% | 135 | 162 | 1.7 | 1.83 | |
ASRH10D50-820M | 82±20% | 178 | 214 | 1.6 | 1.6 | |
ASRH10D50-101M | 100±20% | 190 | 228 | 1.5 | 1.53 | |
ASRH10D50-121M | 120±20% | 233 | 280 | 1.35 | 1.38 | |
ASRH10D50-151M | 150±20% | 263 | 316 | 1.2 | 1.3 | |
ASRH10D50-181M | 180±20% | 338 | 406 | 1.1 | 1.16 | |
ASRH10D50-221M | 220±20% | 385 | 462 | 1 | 1.08 | |
ASRH10D50-271M | 270±20% | 470 | 564 | 0.9 | 0.96 | |
ASRH10D50-331M | 330±20% | 577 | 692 | 0.8 | 0.9 | |
ASRH10D50-391M | 390±20% | 700 | 840 | 0.7 | 0.78 | |
ASRH10D50-471M | 470±20% | 770 | 924 | 0.65 | 0.76 | |
ASRH10D50-561M | 560±20% | 930 | 1116 | 0.6 | 0.69 | |
ASRH10D50-681M | 680±20% | 1152 | 1382 | 0.55 | 0.64 | |
ASRH10D50-821M | 820±20% | 1390 | 1668 | 0.5 | 0.57 | |
ASRH10D50-102M | 1000±20% | 1720 | 2064 | 0.45 | 0.52 |
Series | C | D | E | F | G | H |
ASRH4D18 | 3.25±0.1 | 5.4±0.1 | 0.3±0.05 | 8.0±0.1 | 5.4±0.1 | 12.0±0.3 |
ASRH4D28 | 3.25±0.1 | 5.4±0.1 | 0.3±0.05 | 8.0±0.1 | 5.4±0.1 | 12.0±0.3 |
ASRH5D18 | 2.1±0.1 | 6.15±0.1 | 0.3±0.03 | 12.0±0.1 | 6.15±0.1 | 16.0±0.3 |
ASRH5D28 | 2.8±0.1 | 6.2±0.1 | 0.3±0.05 | 12.0±0.1 | 6.2±0.1 | 16.0±0.3 |
ASRH6D28 | 2.95±0.1 | 7.1±0.1 | 0.3±0.05 | 12.0±0.1 | 8.85±0.1 | 16.0±0.3 |
ASRH6D38 | 4.0±0.1 | 7.25±0.1 | 0.35±0.05 | 12.0±0.1 | 7.25±0.1 | 16.0±0.3 |
ASRH8D28 | 3.35±0.1 | 9.8±0.1 | 0.3±0.05 | 12.0±0.1 | 8.3±0.1 | 16.0±0.3 |
ASRH8D43 | 4.6±0.1 | 9.9±0.1 | 0.4±0.05 | 12.0±0.1 | 8.15±0.1 | 16.0±0.3 |
ASRH10D30 | 4.2±0.1 | 10.55±0.1 | 0.5±0.05 | 16.0±0.1 | 10.55±0.1 | 24.0±0.3 |
ASRH10D40 | 4.2±0.1 | 10.55±0.1 | 0.5±0.05 | 16.0±0.1 | 10.55±0.1 | 24.0±0.3 |
ASRH10D50 | 4.75±0.1 | 10.8±0.1 | 0.35±0.05 | 16.0±0.1 | 10.8±0.1 | 24.0±0.3 |
Tape direction:
Cover tape peel off condition:
Reel dimensions:
Series | Quantity | I | J | K | L | M | W1 | W2 | W3 |
ASRH4D18 | 3000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 12.4 | 18.4Max | 11.9Min |
ASRH4D28 | 2000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 12.4 | 18.4Max | 11.9Min |
ASRH5D18 | 2000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 16.4 | 22.40Max. | 15.90Min. |
ASRH5D28 | 2000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 16.4 | 22.40Max. | 15.90Min. |
ASRH6D28 | 1000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 16.4 | 22.40Max. | 15.90Min. |
ASRH6D38 | 1000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 16.4 | 22.40Max. | 15.90Min. |
ASRH8D28 | 1500pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 16.4 | 22.40Max. | 15.90Min. |
ASRH8D43 | 1000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 16.4 | 22.40Max. | 15.90Min. |
ASRH10D30 | 1000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 24.4 | 30.40Max. | 23.90Min. |
ASRH10D40 | 1000pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 24.4 | 30.40Max. | 23.90Min. |
ASRH10D50 | 800pcs | 13.0±0.5 | 21.0±0.8 | 2.0±0.5 | 330±2.0 | 100Min. | 24.4 | 30.40Max. | 23.90Min. |
