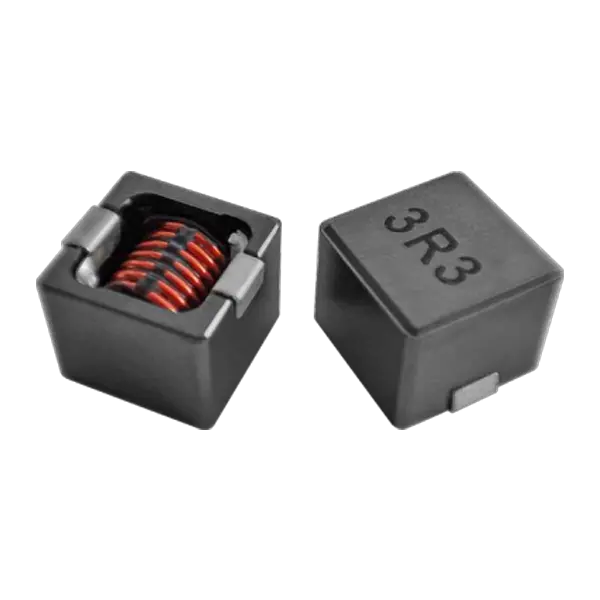

Inductor ACLS Series

  • dc inductor

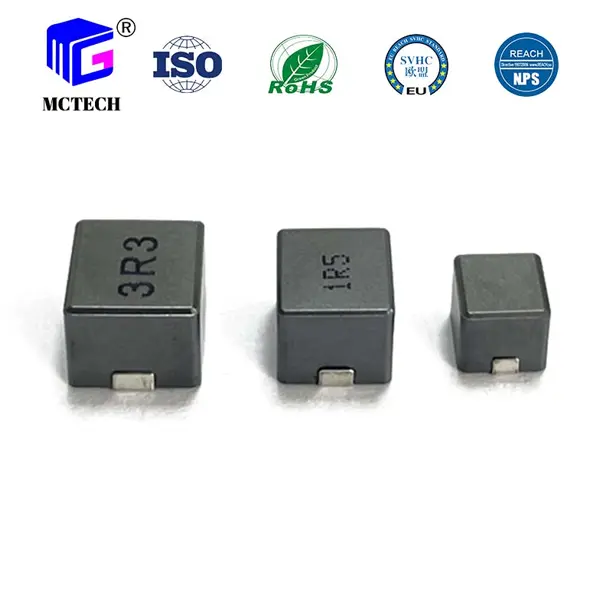

  • dc link inductor

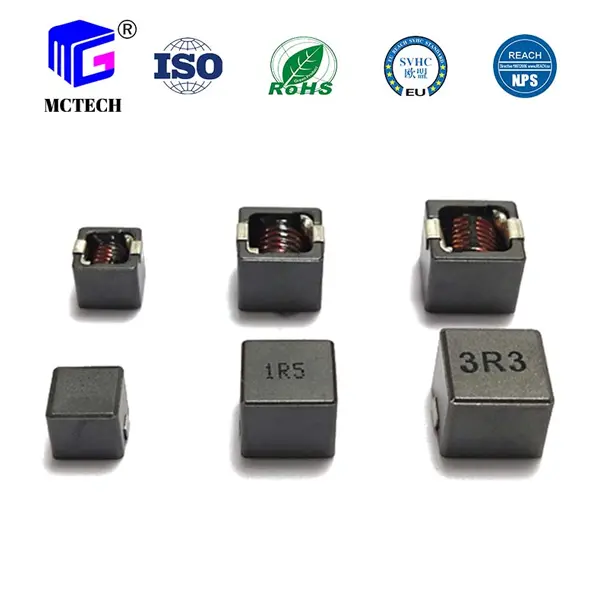

  • dc motor inductor

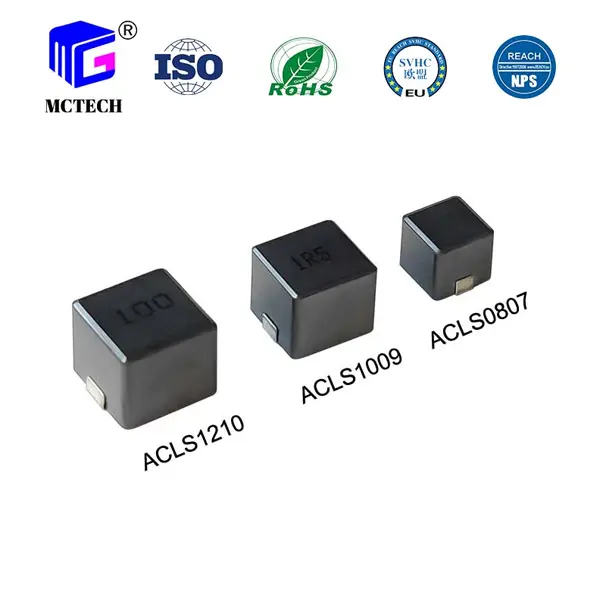

  • differential inductor

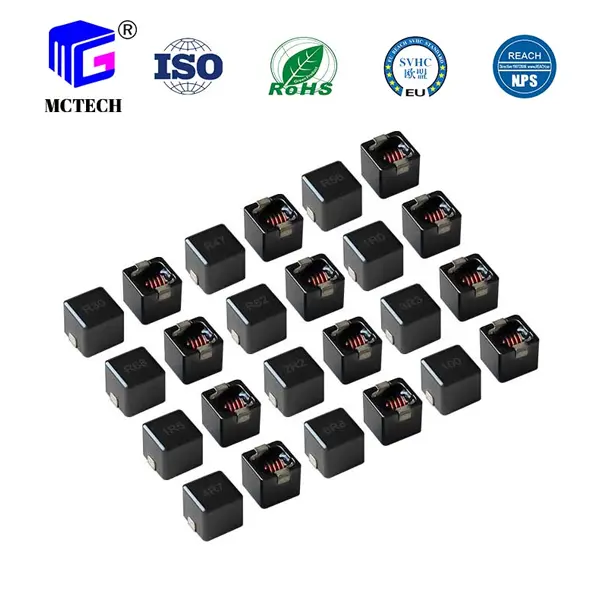

  • digital inductor

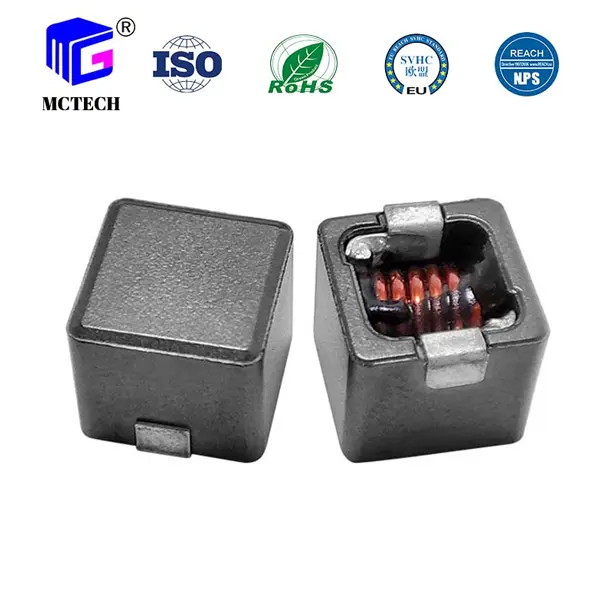

  • digital variable inductor

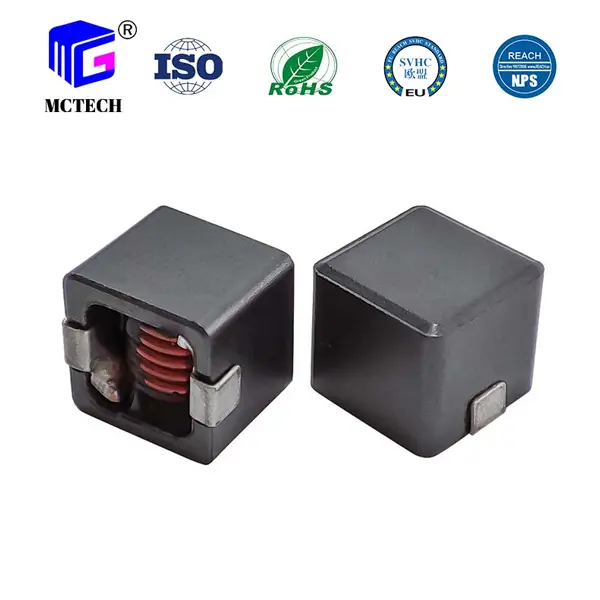

  • dip inductor
  • dc inductor
  • dc link inductor
  • dc motor inductor
  • differential inductor
  • digital inductor
  • digital variable inductor
  • dip inductor
  • High current and Low DCR.

  • Low profile for machine placement.

  • Minimize electromagnetic interference.

  • Prevent EMl effect via precise impedance.

  • Custom inductor design available.

As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

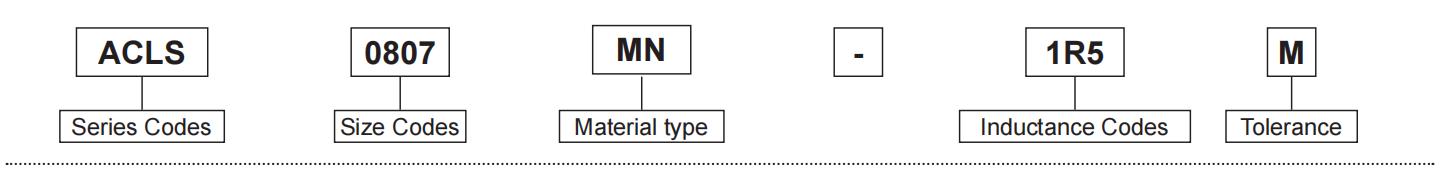

Explanation of part numbers

Wire Wound Chip Inductor ACLS Series

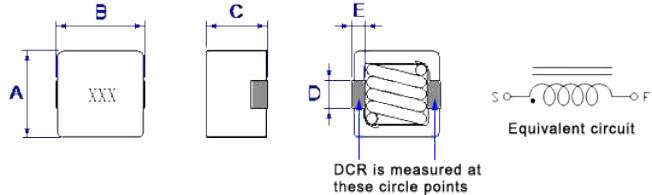

Boundary dimension

Wire Wound Chip Inductor ACLS Series

series sizeABCDEPacking
(Pcs/Reel)
ACLS08077.9±0.48.4±0.47.2±0.42.3±0.21.5±0.2500
ACLS100910.0±0.410.9±0.49.3±0.43.0±0.21.6±0.2400
ACLS121011.4±0.412.1±0.49.5±0.53.5±0.22.0±0.2300



Electrical characteristics:

PART NO.L(0A)
(uH±20%)
Irms(A)
Typ.
Isat(A)
Typ.
DCR(mΩ)
Typ.
DCR(mΩ)
Max.
PDF
ACLS0807MN-R30M0.320.5362.32.7

pdf

ACLS0807MN-R47M0.4719322.653.1

pdf

ACLS0807MN-R56M0.5619282.653.1

pdf

ACLS0807MN-R68M0.681923.52.653.1

pdf

ACLS0807MN-R82M0.8217233.63.9

pdf

ACLS0807MN-1R0M117243.63.9

pdf

ACLS0807MN-1R5M1.516.518.55.35.6pdf
ACLS0807MN-2R2M2.216.512.55.35.6

pdf

ACLS0807MN-3R3M3.3148.57.58.2

pdf

ACLS0807MN-4R7M4.77.5812.713.5

pdf

ACLS0807MN-6R8M6.85.57.523.324

pdf

ACLS0807MN- 100M104.4738.541

pdf








ACLS1009MN-R22M0.2221.5601.41.6

pdf

ACLS1009MN-R33M0.3321.5551.41.6

pdf

ACLS1009MN-R47M0.4720.5471.61.85

pdf

ACLS1009MN-R68M0.6820382.152.65

pdf

ACLS1009MN-R82M0.8220362.152.65

pdf

ACLS1009MN-1R0M12027.52.152.65

pdf

ACLS1009MN-1R5M1.518273.354

pdf

ACLS1009MN-2R2M2.216.5224.64.8

pdf

ACLS1009MN-3R3M3.31415.56.57.15

pdf

ACLS1009MN-4R7M4.713159.49.9

pdf

ACLS1009MN-6R8M6.811.51114.1515

pdf

ACLS1009MN-8R2M8.211.5814.1515

pdf

ACLS1009MN- 100M109822.7523.1

pdf








ACLS1210MN-R22M0.2227601.11.5

pdf

ACLS1210MN-R33M0.3327551.11.5

pdf

ACLS1210MN-R47M0.4726481.351.85

pdf

ACLS1210MN-R68M0.6826381.351.85

pdf

ACLS1210MN-R82M0.8224361.852.5

pdf

ACLS1210MN-1R0M124321.852.5

pdf

ACLS1210MN-1R5M1.519.5272.953.5

pdf

ACLS1210MN-2R2M2.218233.94.3

pdf

ACLS1210MN-3R3M3.317175.25.7

pdf

ACLS1210MN-4R7M4.715.515.57.257.9

pdf

ACLS1210MN-6R8M6.8131310.1511

pdf

ACLS1210MN-8R2M8.2131210.611.8

pdf

ACLS1210MN-100M1091015.3516.7

pdf

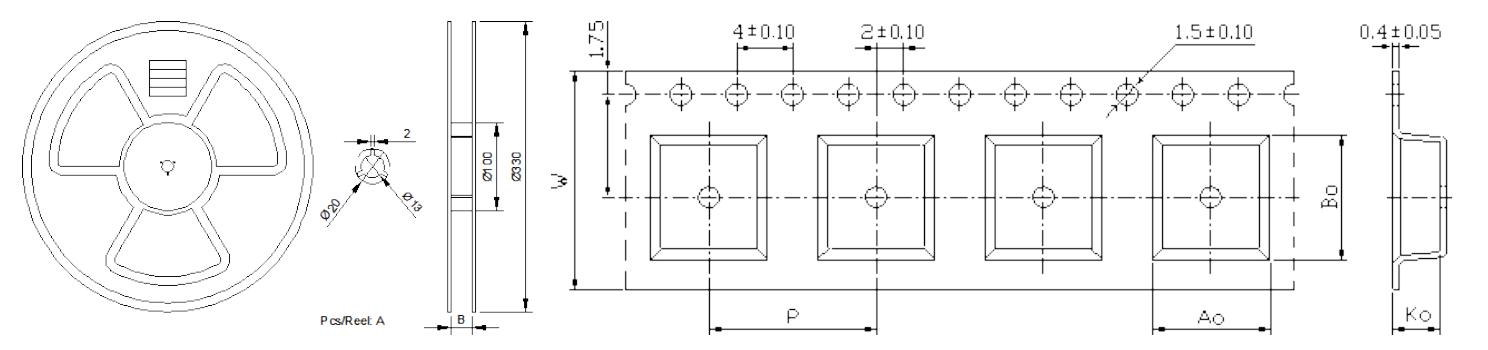

Packing Information

Wire Wound Chip Inductor ACLS Series

SeriesA(Pcs/Reel)BWPAoBoKo
ACLS080750024.5±0.524168.0±0.19.0±0.17.0±0.15
ACLS100940024.5±0.5241610.4±0.211.3±0.210.0TYP
ACLS121030024.5±0.5242011.8±0.112.5±0.110.5TYP

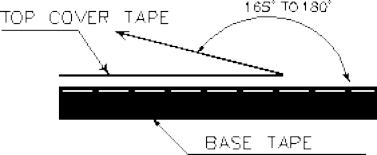

Typical Pulling Force: 10-130 grams:


Wire Wound Chip Inductor ACLS Series
