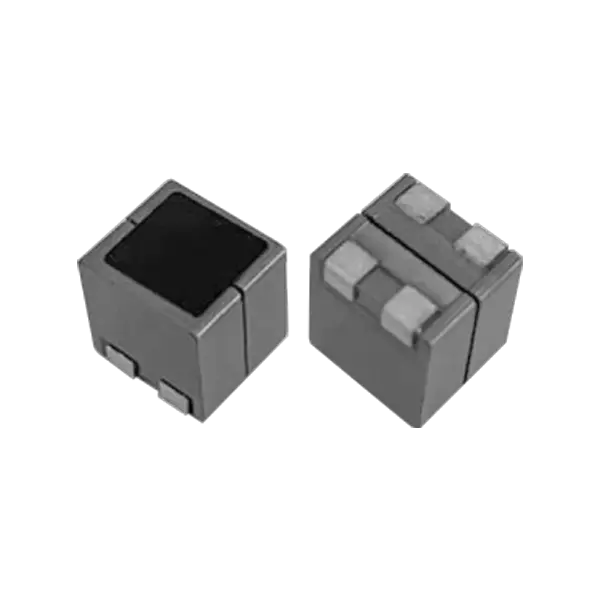

Inductor TSMD Series

  • inductor type of component
  • inductor type of component

Features:

  • AEC-Q200 qualified.

  • Halogen Free.

  • 125°C maximum total temperature operation.

  • 10.4x9.4x10.85mm maximum surface mount package.

  • Magnetically shielded, low EMI.

  • High current carrying capacity, Low core losses.

  • RoHS compliant.

As a trusted inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

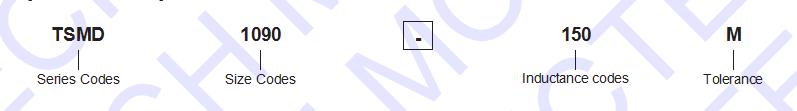

Explanation of part numbers:

Inductor TSMD Series

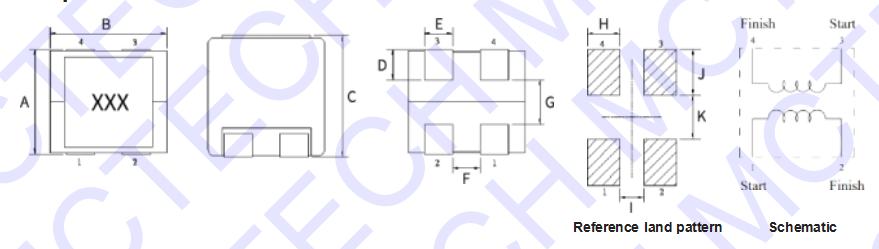

Shape & Dimension:

Inductor TSMD Series

SeriesABCDEFGHIJK
TSMD10909.2±0.210.2±0.210.65±0.22.65±0.22.5±0.22.4±0.24.3Typ.2.85±0.22.1±0.24.05±0.23.84±0.2


Electrical characteristics:

Part No.InductanceDCR (mΩ)Idc(A)Isat(A)Rated Voltage(V)PDF
L0(μH)±20%Typ.Max.Typ.Typ.Max.
TSMD0770-1R0M15.46.59.819.375pdf
TSMD0770-3R3M3.31619.25.71375pdf
TSMD0770-6R8M6.83643.248.875pdf
TSMD0770-100M1043493.56.875pdf
TSMD0770-150M1575902.7675pdf
TSMD0770-220M221121342.24.375pdf








TSMD0890-3R3M3.310.713.46.211.375pdf
TSMD0890-220M22881052.44.675pdf








TSMD1090-3R3M3.37.58.692675pdf
TSMD1090-100M1018225.81275pdf
TSMD1090-150M153440.84.5975pdf
TSMD1090-200M2246563.68.575pdf

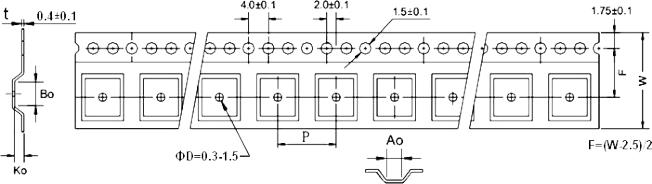

Packing Information:

Inductor TSMD Series

SeriesQuantityA0B0K0WP
TSMD1090300pcs9.5±0.110.5±0.111.35±0.124±0.116±0.1

Inductor TSMD Series

SeriesTYPEA(Ref.)B(Ref.)C(Ref.)D(Ref.)E(Ref.)G(Ref.)G2(Ref.)
TSMD109013''*24mm330±120±0.813±0.5100±12.0±0.524.5±0.528.5Typ.

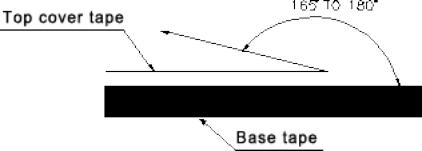

Typical Pulling Force: 10-130 grams
