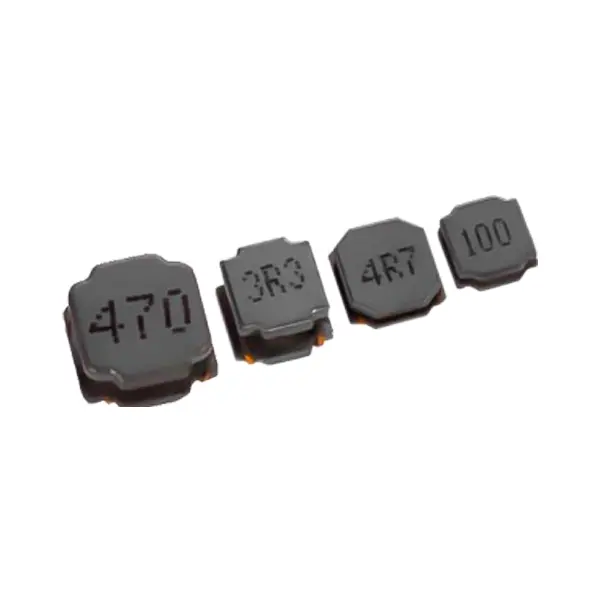

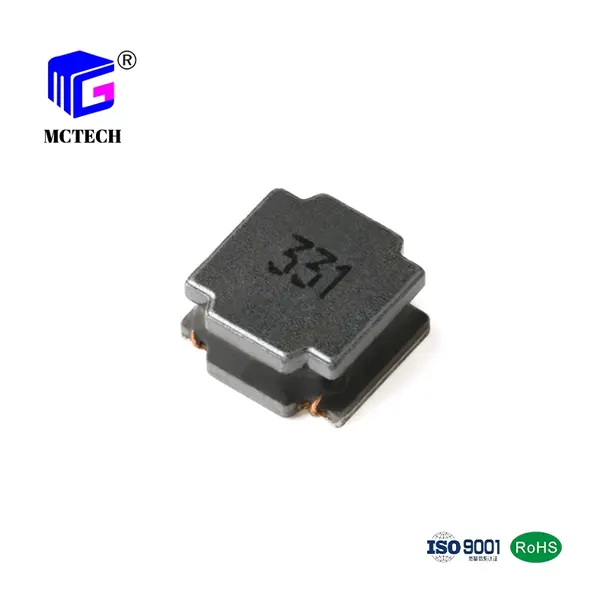

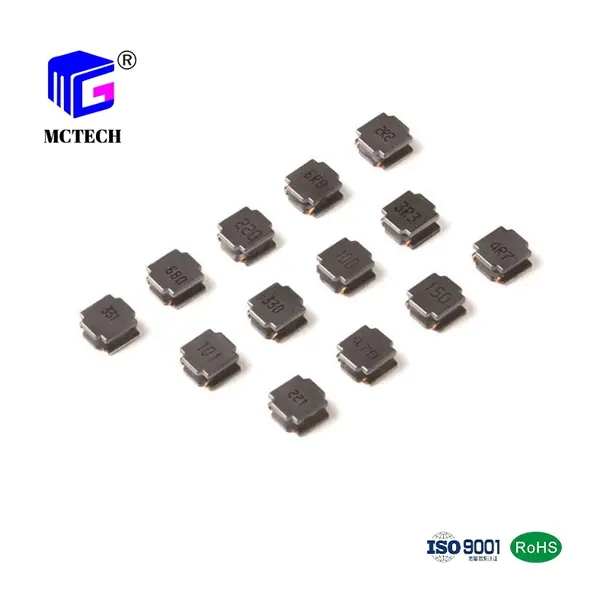

Features:
low profile, low RDC, high current handing capacities.
Magnetically shielded structure that ensures the high-density mounting configurations.
Flat bottom surfaces ensures secure, reliable mounting.
Provided in embossed carrier tape packaging for use with automatic mounting machines.
Applications:
Ideally used in Portable telephones, PDA, DSC, DC-DC Converters, etc.
As a trusted inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

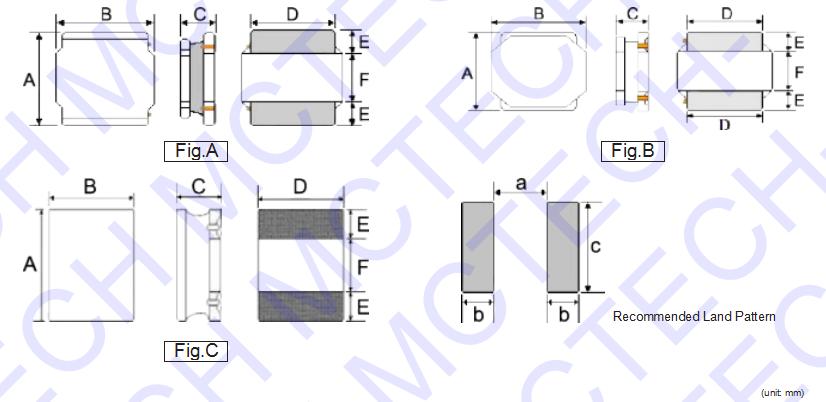

Series | Shape | A | B | C | D | E | F | a Typ. | b Typ. | c Typ. |
SNR201610 | Fig.A | 2.0±0.3 | 1.6±0.3 | 1.05Max | 1.2±0.2 | 0.6±0.2 | 0.8±0.2 | 0.7 | 0.7 | 1.7 |
SNR201610H | Fig.C | 2.0±0.3 | 1.6±0.3 | 1.05Max | 1.2±0.2 | 0.6±0.2 | 0.8±0.2 | 0.7 | 0.7 | 1.7 |
SNR252010 | Fig.A | 2.5±0.3 | 2.0±0.3 | 1.0Max. | 2.0±0.2 | 0.8±0.2 | 0.8±0.2 | 0.8 | 0.85 | 2 |
SNR252010H | Fig.C | 2.5±0.3 | 2.0±0.3 | 1.0Max. | 2.0±0.2 | 0.8±0.2 | 0.8±0.2 | 0.8 | 0.85 | 2 |
SNR252012 | Fig.A | 2.5±0.3 | 2.0±0.3 | 1.2Max. | 2.0±0.2 | 0.8±0.2 | 0.8±0.2 | 0.8 | 0.85 | 2 |
SNR252012H | Fig.C | 2.5±0.3 | 2.0±0.3 | 1.2Max. | 2.0±0.2 | 0.8±0.2 | 0.8±0.2 | 0.8 | 0.85 | 2 |
SNR3012 | Fig.A | 3.0±0.2 | 3.0±0.2 | 1.2Max. | 2.5±0.2 | 0.75±0.2 | 1.5±0.2 | 1.5 | 0.8 | 2.7 |
SNR3015 | Fig.A | 3.0±0.2 | 3.0±0.2 | 1.5Max. | 2.5±0.2 | 0.75±0.2 | 1.5±0.2 | 1.5 | 0.8 | 2.7 |
SNR3015H | Fig.B | 3.0±0.2 | 3.0±0.2 | 1.5Max. | 2.5±0.2 | 0.75±0.2 | 1.5±0.2 | 1.5 | 0.8 | 2.7 |
SNR4012 | Fig.A/Fig.B | 4.0±0.2 | 4.0±0.2 | 1.2Max. | 3.3±0.2 | 0.95±0.2 | 2.1±0.2 | 1.9 | 1.1 | 3.7 |
SNR4015 | Fig.A/Fig.B | 4.0±0.2 | 4.0±0.2 | 1.5Max. | 3.3±0.2 | 0.95±0.2 | 2.1±0.2 | 1.9 | 1.1 | 3.7 |
SNR4018 | Fig.A/Fig.B | 4.0±0.2 | 4.0±0.2 | 1.8Max. | 3.3±0.2 | 0.95±0.2 | 2.1±0.2 | 1.9 | 1.1 | 3.7 |
SNR4020 | Fig.A | 4.0±0.2 | 4.0±0.2 | 2.0Max. | 3.3±0.2 | 0.95±0.2 | 2.1±0.2 | 1.9 | 1.1 | 3.7 |
SNR4020H | Fig.B | 4.0±0.2 | 4.0±0.2 | 2.0Max. | 3.3±0.2 | 0.95±0.2 | 2.1±0.2 | 1.9 | 1.1 | 3.7 |
SNR4030 | Fig.A/Fig.B | 4.0±0.2 | 4.0±0.2 | 3.0Max. | 3.3±0.2 | 0.95±0.2 | 2.1±0.2 | 1.9 | 1.1 | 3.7 |
SNR5020 | Fig.A/Fig.B | 5.0±0.2 | 5.0±0.2 | 2.0Max. | 4.0±0.2 | 1.25±0.2 | 2.5±0.2 | 2.3 | 1.4 | 4.2 |
SNR5040 | Fig.A/Fig.B | 5.0±0.2 | 5.0±0.2 | 4.0Max. | 4.0±0.2 | 1.25±0.2 | 2.9±0.2 | 2.3 | 1.4 | 4.2 |
SNR6020 | Fig.A/Fig.B | 6.0±0.3 | 6.0±0.3 | 2.0Max. | 4.9±0.3 | 1.55±0.3 | 2.9±0.3 | 2.8 | 1.7 | 5.7 |
SNR6028 | Fig.A/Fig.B | 6.0±0.3 | 6.0±0.3 | 2.8Max. | 4.9±0.3 | 1.55±0.3 | 2.9±0.3 | 2.8 | 1.7 | 5.7 |
SNR6045 | Fig.A/Fig.B | 6.0±0.3 | 6.0±0.3 | 4.5Max. | 4.9±0.3 | 1.55±0.3 | 2.9±0.3 | 2.8 | 1.7 | 5.7 |
SNR8040 | Fig.A/Fig.B | 8.0±0.3 | 8.0±0.3 | 4.2Max. | 6.3±0.3 | 2.0±0.3 | 4.0±0.3 | 3.8 | 2.2 | 7.5 |

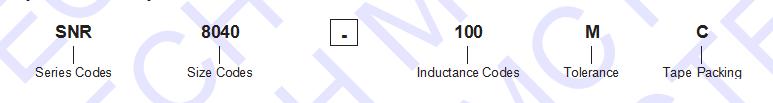

Part Number | Inductance | DCR | Isat | Irms | ||||
100KHz/1.0V | Max | Typ. | Max | Typ. | Max | Typ. | ||
Units | (μH) | (Ω) | (Ω) | (Ω) | (Ω) | (Ω) | (Ω) | |
SNR201610-R22N | 0.22±30% | 0.040 | 0.033 | 3.70 | 4.10 | 2.80 | 3.10 | |
SNR201610-R24N | 0.24±30% | 0.040 | 0.033 | 3.70 | 4.10 | 2.80 | 3.10 | |
SNR201610-R33N | 0.33±30% | 0.048 | 0.043 | 3.00 | 3.70 | 2.40 | 2.90 | |
SNR201610-R47N | 0.47±30% | 0.060 | 0.052 | 2.30 | 2.85 | 2.30 | 2.60 | |
SNR201610-R68N | 0.68±30% | 0.076 | 0.068 | 1.95 | 2.45 | 2.00 | 2.20 | |
SNR201610-1R0N | 1.0±30% | 0.114 | 0.104 | 1.65 | 1.85 | 1.45 | 1.60 | |
SNR201610-1R5N | 1.5±30% | 0.174 | 0.164 | 1.35 | 1.65 | 1.10 | 1.20 | |
SNR201610-2R2M | 2.2±20% | 0.265 | 0.232 | 1.20 | 1.45 | 1.05 | 1.15 | |
SNR201610-3R3M | 3.3±20% | 0.345 | 0.328 | 1.00 | 1.20 | 0.85 | 0.95 | |
SNR201610-4R7M | 4.7±20% | 0.480 | 0.430 | 0.75 | 0.90 | 0.70 | 0.80 | |
SNR201610-6R8M | 6.8±20% | 0.800 | 0.715 | 0.70 | 0.85 | 0.55 | 0.60 | |
SNR201610-8R2M | 8.2±20% | 0.940 | 0.818 | 0.68 | 0.78 | 0.53 | 0.60 | |
SNR201610-100M | 10±20% | 1.000 | 0.930 | 0.65 | 0.70 | 0.50 | 0.60 | |
SNR252010-R24N | 0.24±30% | 0.034 | 0.026 | 3.60 | 4.40 | 2.75 | 3.00 | |
SNR252010-R33N | 0.33±30% | 0.040 | 0.033 | 3.60 | 4.30 | 2.45 | 2.70 | |
SNR252010-R47N | 0.47±30% | 0.044 | 0.035 | 2.80 | 3.20 | 2.40 | 2.60 | |
SNR252010-R68N | 0.68±30% | 0.062 | 0.051 | 2.75 | 3.10 | 2.10 | 2.35 | |
SNR252010-1R0N | 1.0±30% | 0.080 | 0.066 | 2.05 | 2.50 | 1.85 | 2.05 | |
SNR252010-1R5N | 1.5±30% | 0.108 | 0.085 | 1.70 | 2.05 | 1.55 | 1.70 | |
SNR252010-2R2M | 2.2±20% | 0.150 | 0.132 | 1.50 | 1.75 | 1.35 | 1.50 | |
SNR252010-3R3M | 3.3±20% | 0.228 | 0.173 | 1.10 | 1.35 | 1.05 | 1.20 | |
SNR252010-4R7M | 4.7±20% | 0.330 | 0.248 | 1.00 | 1.15 | 0.90 | 1.00 | |
SNR252010-5R6M | 5.6±20% | 0.480 | 0.310 | 0.90 | 1.05 | 0.80 | 0.90 | |
SNR252010-6R8M | 6.8±20% | 0.480 | 0.438 | 0.80 | 0.95 | 0.72 | 0.80 | |
SNR252010-8R2M | 8.2±20% | 0.572 | 0.440 | 0.73 | 0.85 | 0.69 | 0.78 | |
SNR252010-100M | 10±20% | 0.600 | 0.500 | 0.65 | 0.75 | 0.65 | 0.75 | |
SNR252010-120M | 12±20% | 0.850 | 0.700 | 0.58 | 0.62 | 0.58 | 0.62 | |
SNR252010-150M | 15±20% | 1.050 | 0.710 | 0.50 | 0.55 | 0.45 | 0.50 | |
SNR252012-R24N | 0.24±30% | 0.023 | 0.019 | 4.1 | 4.8 | 4.1 | 4.5 | |
SNR252012-R33N | 0.33±30% | 0.031 | 0.026 | 4 | 4.7 | 3.35 | 3.7 | |
SNR252012-R47N | 0.47±30% | 0.036 | 0.031 | 3.8 | 4.5 | 3 | 3.3 | |
SNR252012-R68N | 0.68±30% | 0.047 | 0.038 | 3 | 3.3 | 2.3 | 2.5 | |
SNR252012-1R0N | 1.0±30% | 0.060 | 0.05 | 2.25 | 2.5 | 2.3 | 2.6 | |
SNR252012-1R2N | 1.2±30% | 0.078 | 0.065 | 2.2 | 2.5 | 2 | 2.2 | |
SNR252012-1R5N | 1.5±20% | 0.090 | 0.075 | 2 | 2.35 | 1.8 | 2 | |
SNR252012-1R8N | 1.8±20% | 0.108 | 0.093 | 1.95 | 2.2 | 1.75 | 1.9 | |
SNR252012-2R2M | 2.2±20% | 0.108 | 0.093 | 1.75 | 1.9 | 1.75 | 1.9 | |
SNR252012-2R7M | 2.7±20% | 0.156 | 0.13 | 1.3 | 1.6 | 1.4 | 1.5 | |
SNR252012-3R3M | 3.3±20% | 0.156 | 0.13 | 1.2 | 1.35 | 1.4 | 1.5 | |
SNR252012-4R7M | 4.7±20% | 0.228 | 0.19 | 1.1 | 1.2 | 1.1 | 1.2 | |
SNR252012-5R6M | 5.6±20% | 0.330 | 0.255 | 1 | 1.1 | 1 | 1.15 | |
SNR252012-6R8M | 6.8±20% | 0.360 | 0.3 | 0.9 | 1.1 | 0.95 | 1.05 | |
SNR252012-100M | 10±20% | 0.522 | 0.435 | 0.7 | 0.85 | 0.78 | 0.86 | |
SNR252012-150M | 15±20% | 1.000 | 0.7 | 0.6 | 0.7 | 0.5 | 0.6 | |
SNR252012-220M | 22±20% | 1.290 | 1 | 0.45 | 0.55 | 0.48 | 0.55 |
Part Number | Inductance | DCR | Isat | Irms | ||||
100KHz/1.0V | Max | Typ. | Max | Typ. | Max | Typ. | ||
Units | (μH) | (Ω) | (Ω) | (Ω) | (Ω) | (Ω) | (Ω) | |
SNR3012-1R0N | 1.0±30% | 0.052 | 0.043 | 1.87 | 2.8 | 2.2 | 2.7 | |
SNR3012-1R5N | 1.5±30% | 0.059 | 0.052 | 1.62 | 1.9 | 1.8 | 2 | |
SNR3012-2R2M | 2.2±20% | 0.098 | 0.088 | 1.2 | 1.6 | 1.55 | 1.7 | |
SNR3012-3R3M | 3.3±20% | 0.13 | 0.118 | 1.05 | 1.2 | 1.36 | 1.45 | |
SNR3012-4R7M | 4.7±20% | 0.156 | 0.135 | 0.9 | 1 | 1.24 | 1.3 | |
SNR3012-6R8M | 6.8±20% | 0.247 | 0.218 | 0.75 | 0.9 | 0.98 | 1.1 | |
SNR3012-100M | 10.0±20% | 0.345 | 0.314 | 0.6 | 0.75 | 0.8 | 0.85 | |
SNR3012-150M | 15.0±20% | 0.468 | 0.425 | 0.45 | 0.62 | 0.7 | 0.75 | |
SNR3012-220M | 22.0±20% | 0.839 | 0.726 | 0.42 | 0.52 | 0.53 | 0.59 | |
SNR3012-330M | 33.0±20% | 1.138 | 0.875 | 0.36 | 0.46 | 0.46 | 0.5 | |
SNR3012-470M | 47.0±20% | 1.885 | 1.761 | 0.27 | 0.35 | 0.35 | 0.4 | |
SNR3015-R47N | 0.47±30% | 0.03 | 0.025 | 3.5 | 3.8 | 3.5 | 3.8 | |
SNR3015-1R0N | 1.0±30% | 0.039 | 0.032 | 2.35 | 2.6 | 2.35 | 2.5 | |
SNR3015-1R5N | 1.5±30% | 0.065 | 0.05 | 2.3 | 2.7 | 1.7 | 2.2 | |
SNR3015-2R2M | 2.2±20% | 0.078 | 0.064 | 1.9 | 2 | 1.8 | 2 | |
SNR3015-3R3M | 3.3±20% | 0.104 | 0.086 | 1.32 | 1.6 | 1.36 | 1.6 | |
SNR3015-4R7M | 4.7±20% | 0.163 | 0.108 | 1.1 | 1.3 | 1.1 | 1.2 | |
SNR3015-5R6M | 5.6±20% | 0.18 | 0.132 | 1.1 | 1.2 | 1.1 | 1.2 | |
SNR3015-6R8M | 6.8±20% | 0.26 | 0.2 | 0.9 | 1.1 | 1.1 | 1.2 | |
SNR3015-100M | 10±20% | 0.325 | 0.27 | 0.77 | 0.92 | 0.77 | 0.8 | |
SNR3015-150M | 15.0±20% | 0.455 | 0.39 | 0.66 | 0.85 | 0.66 | 0.7 | |
SNR3015-220M | 22.0±20% | 0.598 | 0.469 | 0.52 | 0.65 | 0.57 | 0.65 | |
SNR3015-330M | 33.0±20% | 1.066 | 0.8 | 0.45 | 0.5 | 0.45 | 0.5 | |
SNR3015-470M | 47.0±20% | 1.6 | 1.195 | 0.35 | 0.43 | 0.35 | 0.43 | |
SNR3015-680M | 68.0±20% | 2.7 | 1.65 | 0.28 | 0.35 | 0.28 | 0.31 | |
SNR4012-1R0N | 1.0±30% | 0.065 | 0.057 | 2.61 | 3.2 | 1.65 | 2.5 | |
SNR4012-1R5N | 1.5±30% | 0.085 | 0.073 | 2.1 | 2.7 | 1.46 | 2.2 | |
SNR4012-1R8N | 1.8±30% | 0.104 | 0.073 | 2.12 | 2.5 | 1.32 | 1.9 | |
SNR4012-2R2M | 2.2±20% | 0.104 | 0.088 | 1.76 | 2.3 | 1.32 | 1.9 | |
SNR4012-3R3M | 3.3±20% | 0.143 | 0.11 | 1.72 | 2.1 | 1.12 | 1.6 | |
SNR4012-4R7M | 4.7±20% | 0.163 | 0.137 | 1.15 | 1.8 | 1.05 | 1.5 | |
SNR4012-5R6M | 5.6±20% | 0.182 | 0.159 | 1 | 1.6 | 1 | 1.2 | |
SNR4012-6R8M | 6.8±20% | 0.257 | 0.227 | 0.85 | 1.4 | 0.84 | 1.1 | |
SNR4012-100M | 10.0±20% | 0.345 | 0.308 | 0.8 | 1.1 | 0.77 | 1 | |
SNR4012-150M | 15.0±20% | 0.442 | 0.412 | 0.56 | 0.8 | 0.64 | 0.85 | |
SNR4012-220M | 22.0±20% | 0.763 | 0.713 | 0.46 | 0.7 | 0.49 | 0.7 | |
SNR4012-330M | 33.0±20% | 1.053 | 0.915 | 0.42 | 0.6 | 0.42 | 0.58 | |
SNR4012-470M | 47.0±20% | 1.43 | 1.34 | 0.35 | 0.5 | 0.37 | 0.5 |

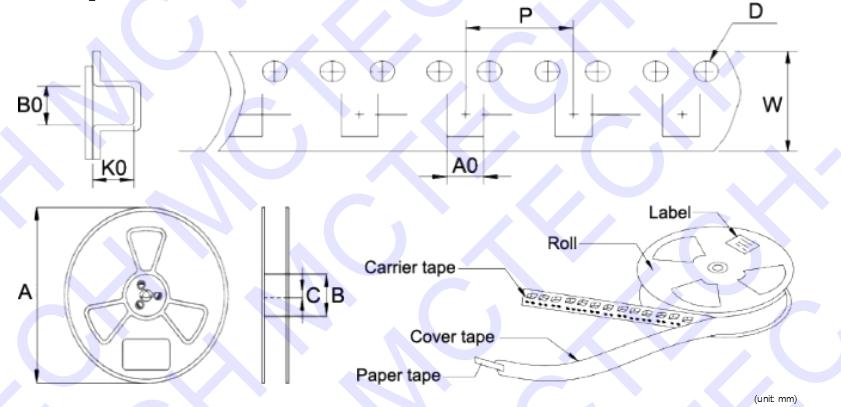

Type | Tape Dimension (mm)TYP | Reel Dimension (mm)TYP | Quantity | |||||||
W | A0 | B0 | K0 | D | P | A | B | C | (Pcs/Reel) | |
SNR201610 | 8 | 1.9 | 2.2 | 1.2 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR201610H | 8 | 1.9 | 2.2 | 1.2 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR252010 | 8 | 2.35 | 2.65 | 1.4 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR252010H | 8 | 2.35 | 2.65 | 1.4 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR252012 | 8 | 2.35 | 2.65 | 1.4 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR252012H | 8 | 2.35 | 2.65 | 1.4 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR3012 | 8 | 3.3 | 3.3 | 2 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR3015 | 8 | 3.3 | 3.3 | 2 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR3015H | 8 | 3.3 | 3.3 | 2 | 1.5 | 4 | 178 | 58 | 13 | 2000 |
SNR4012 | 12 | 4.4 | 4.4 | 2 | 1.5 | 8 | 330 | 100 | 13 | 4500 |
SNR4015 | 12 | 4.4 | 4.4 | 2 | 1.5 | 8 | 330 | 100 | 13 | 4500 |
SNR4018 | 12 | 4.4 | 4.4 | 2 | 1.5 | 8 | 330 | 100 | 13 | 3000 |
SNR4020 | 12 | 4.4 | 4.4 | 2.1 | 1.5 | 8 | 330 | 100 | 13 | 3000 |
SNR4020H | 12 | 4.4 | 4.4 | 2.1 | 1.5 | 8 | 330 | 100 | 13 | 3000 |
SNR4030 | 12 | 4.4 | 4.4 | 3.1 | 1.5 | 8 | 330 | 100 | 13 | 2000 |
SNR5020 | 12 | 5.5 | 5.5 | 2.4 | 1.5 | 8 | 330 | 100 | 13 | 2500 |
SNR5040 | 12 | 5.5 | 5.5 | 4.4 | 1.5 | 8 | 330 | 100 | 13 | 1500 |
SNR6020 | 12 | 6.5 | 6.5 | 3 | 1.5 | 8 | 330 | 100 | 13 | 2500 |
SNR6028 | 12 | 6.5 | 6.5 | 3 | 1.5 | 8 | 330 | 100 | 13 | 2000 |
SNR6045 | 12 | 6.5 | 6.5 | 4.7 | 1.5 | 8 | 330 | 100 | 13 | 1500 |
SNR8040 | 16 | 8.4 | 8.4 | 4.4 | 1.5 | 12 | 330 | 100 | 13 | 1000 |
