Inductor LFET Series

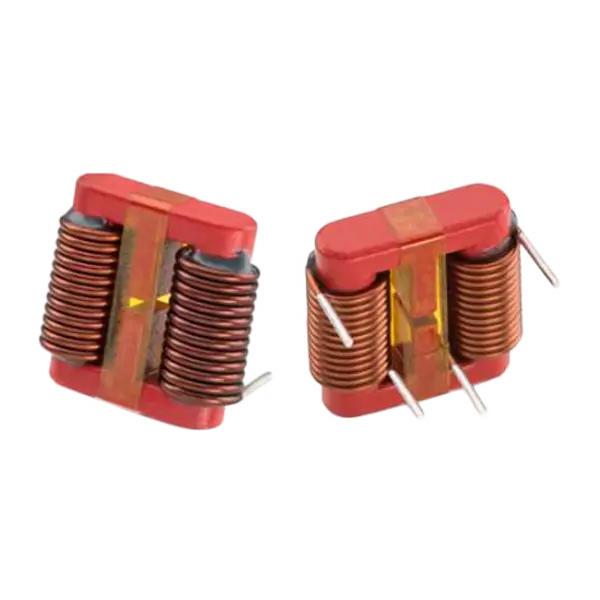

  • coupled inductors in series

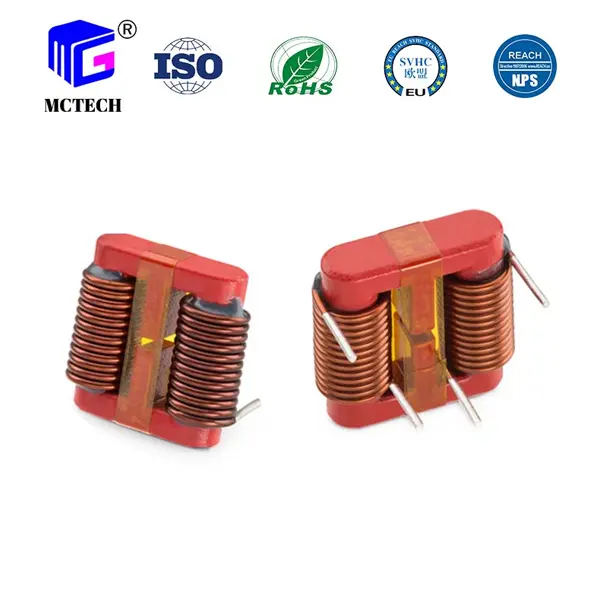

  • crossover inductor

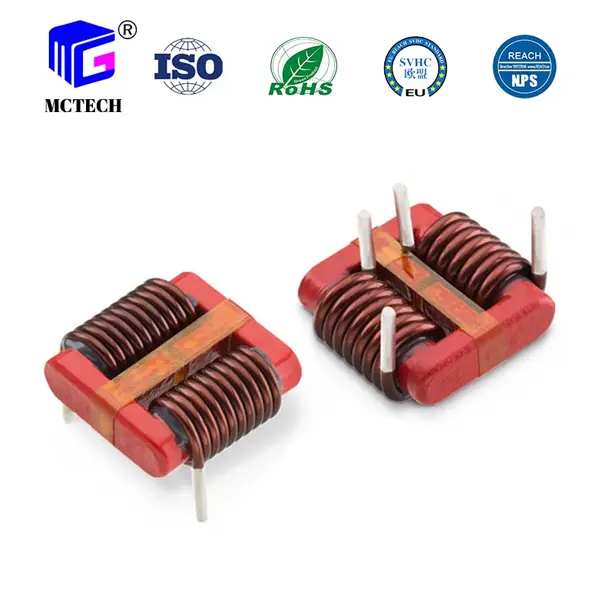

  • cylindrical inductor

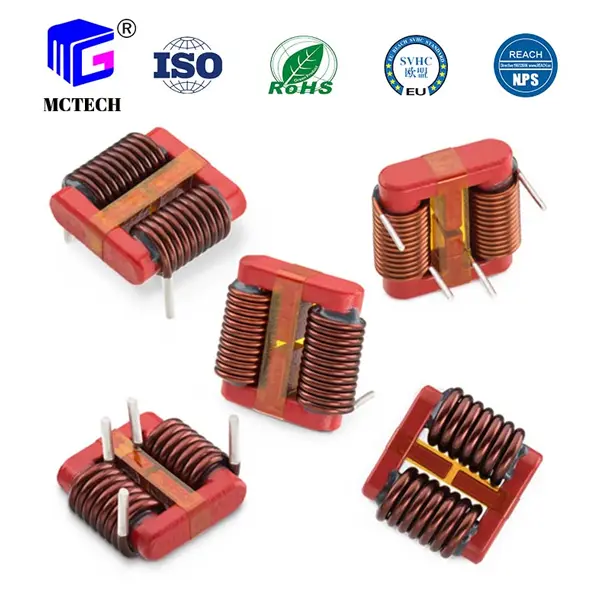

  • dc dc inductor
  • coupled inductors in series
  • crossover inductor
  • cylindrical inductor
  • dc dc inductor
  • Stable stray inductance for differential mode filtering.

  • High current carrying capacity.

  • Low profile.

  • Flammability corresponding to UL 94 V-0.

  • Climatic category 40/115/21.

Applications:

  • AC/DC converter.

  • Mains operated LED drivers.

  • High frequency DC/DC converter.

  • Switched mode power supplies.

As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

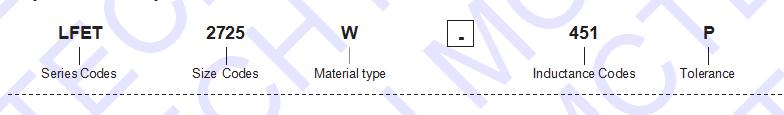

Explanation of part numbers

Inductor LFET Series

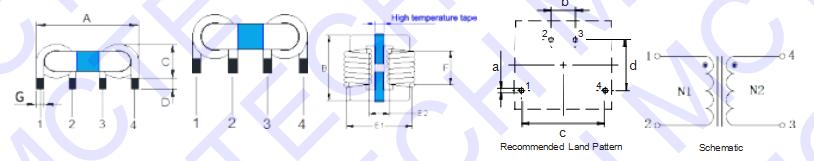

Boundary dimension

Inductor LFET Series

Series sizeABCDE1E2FGabcd
LFET2725W-121P27.5Max25.0Max11.7Max4.5±0.524.8±0.56.0±0.514.5±0.5Ø2.0±0.1Φ2.36.024.814.5
LFET2725W-151P27.5Max25.0Max11.3Max4.5±0.524.6±0.56.2±0.514.5±0.5Ø1.8±0.1Φ2.16.224.614.5
LFET2725W-231P27.5Max25.0Max10.4Max4.5±0.524.2±0.56.6±0.514.5±0.5Ø1.4±0.1Φ1.76.624.214.5
LFET2725W-331P27.5Max25.0Max10.0Max4.5±0.524.0±0.56.8±0.515.0±0.5Ø1.2±0.1Φ1.56.824.015.0
LFET2725W-451P27.5Max25.0Max9.7Max4.5±0.523.8±0.57.0±0.514.5±0.5Ø1.0±0.1Φ1.37.023.814.5


Electrical characteristics:

PART NO.L(µH)±40%Irms(A)
Max
DCRmax.
(m Ω)
VR
(V (AC))
VT
(V (AC))
MaterialMountPDF
LFET2725W-121P12023.51.42501500MnZnTHT

pdf

LFET2725W-151P150201.92501500MnZnTHT

pdf

LFET2725W-231P230163.62501500MnZnTHT

pdf

LFET2725W-331P3301262501500MnZnTHT

pdf

LFET2725W-451P4509.59.62501500MnZnTHT

pdf


Packing Information

Inductor LFET Series Inductor LFET Series Inductor LFET Series

PVC SIZEQUANTITY
255*210*19mm30/PVC
OUTBOX SIZEQUANTITY
260*235*200mm210PCS/BOX
