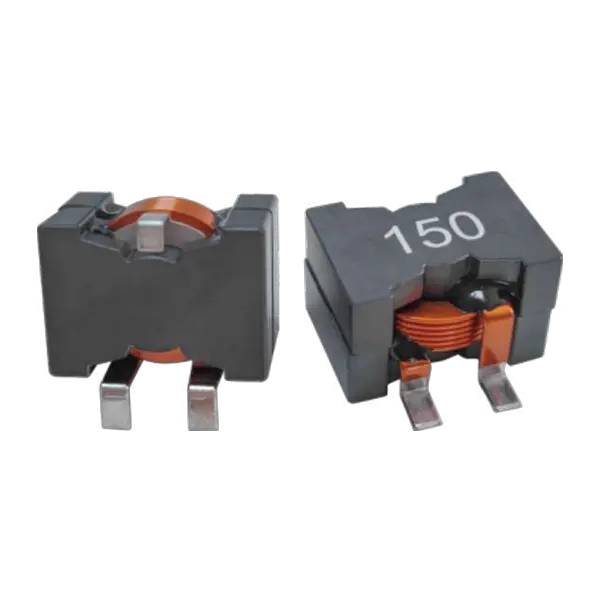

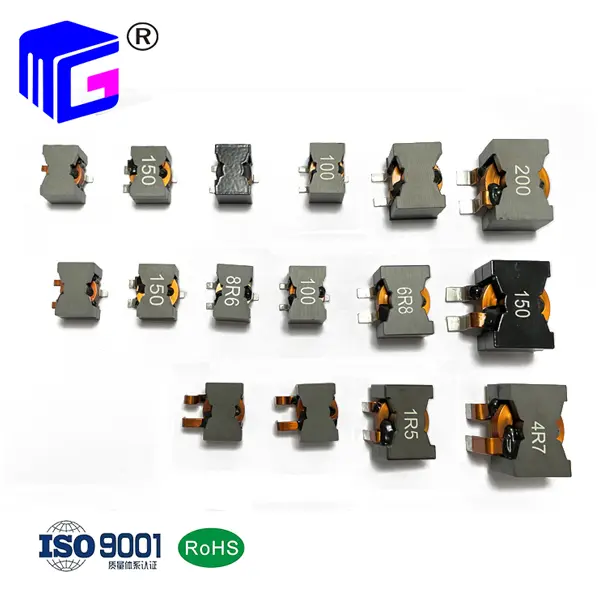

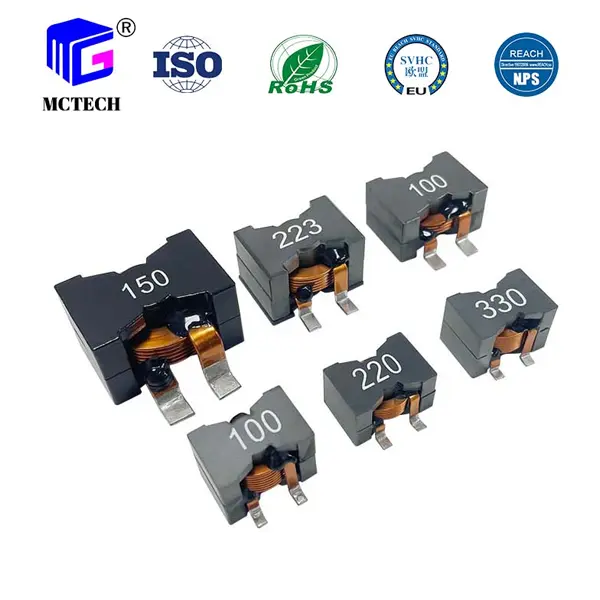

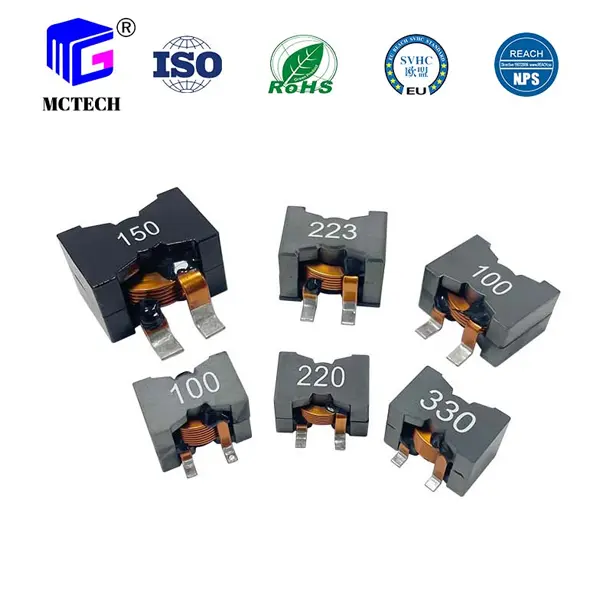

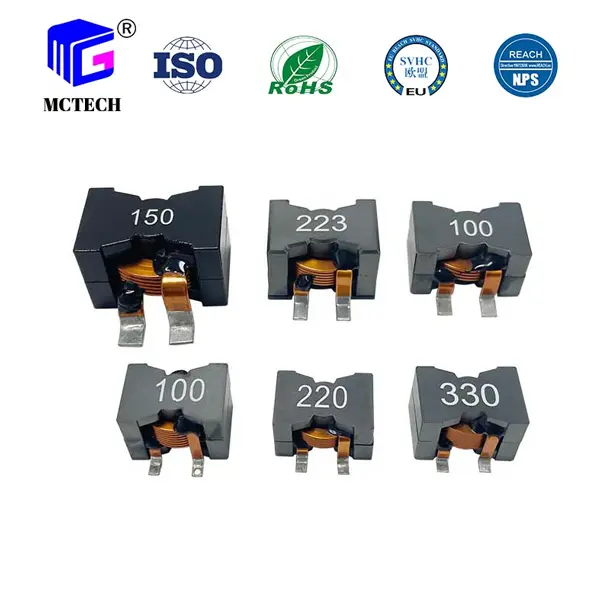

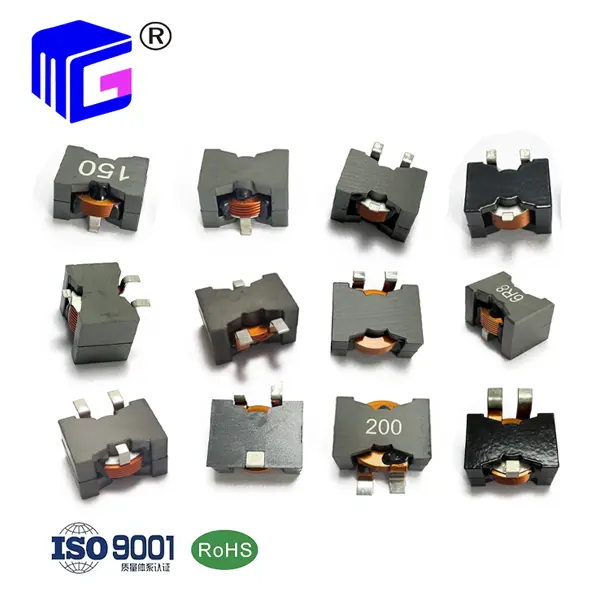

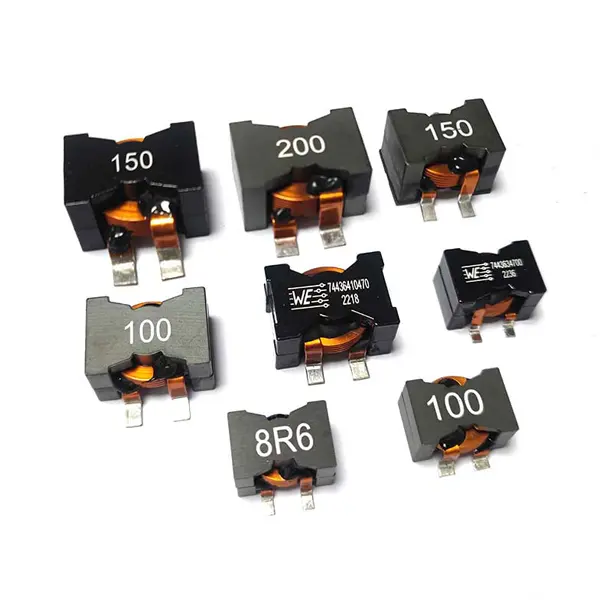

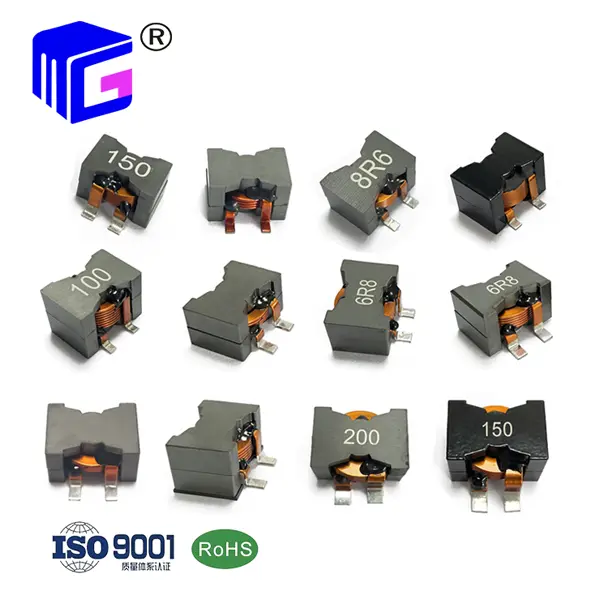

This custom inductor is perfect for high current.
Extremely low DCR.
Low voltage power supply applications.
High power DC power supply.
Operating temperature: -25℃ ~125℃.
Placement formis SMD.

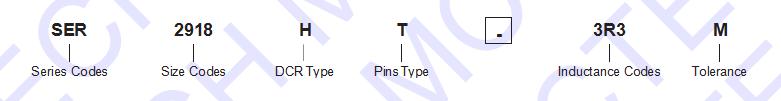

| PART NO. | L(0A)(μH) | DCR(mΩ) | SRF(MHz)TYPE | Isat(A) | Irms(A)40“rise | |||
| Nom. | Max. | 20% drop | 30% drop | |||||
| SER2817H-3R3M | 3.3±20% | 2.45 | 2.8 | 40 | 92.5 | 93.6 | 28 |  |
| SER2817H-4R7M | 4.7±20% | 2.45 | 2.8 | 30 | 61.2 | 62.4 | 28 |
|
| SER2817H-6R8M | 6.8±20% | 2.45 | 2.8 | 25 | 45 | 45.9 | 28 |
|
| SER2817H-100M | 10±20% | 2.45 | 2.8 | 20 | 31.2 | 32.1 | 28 |
|
| SER2817H-150M | 15±20% | 2.45 | 2.8 | 16 | 21.2 | 21.9 | 28 |
|
| SER2817H-220M | 22±20% | 2.45 | 2.8 | 15 | 14 | 15 | 28 |
|
| SER2817H-330M | 33±20% | 2.45 | 2.8 | 10 | 8.7 | 9.6 | 28 |
|
| PART NO. | L(0A)(μH) | DCR(mΩ) | SRF(MHz)TYPE | Isat(A) | Irms(A)40“rise | |||
| Nom. | Max. | 20% drop | 30% drop | |||||
| SER2915H-1R5M | 1.5±20% | 1.58 | 1.8 | 50 | >100 | >100 | 30 |
|
| SER2915H-2R2M | 2.2±20% | 1.58 | 1.8 | 40 | >100 | >100 | 30 |
|
| SER2915H-3R3M | 3.3±20% | 1.58 | 1.8 | 30 | 66.9 | 68.4 | 30 |
|
| SER2915H-4R7M | 4.7±20% | 1.58 | 1.8 | 25 | 48 | 50.1 | 30 |
|
| SER2915H-6R8M | 6.8±20% | 1.58 | 1.8 | 20 | 34.5 | 36.2 | 30 |
|
| SER2915H-100M | 10±20% | 1.58 | 1.8 | 15 | 21.5 | 23.4 | 30 |
|

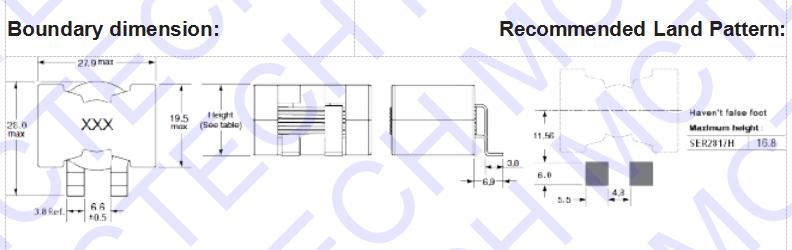

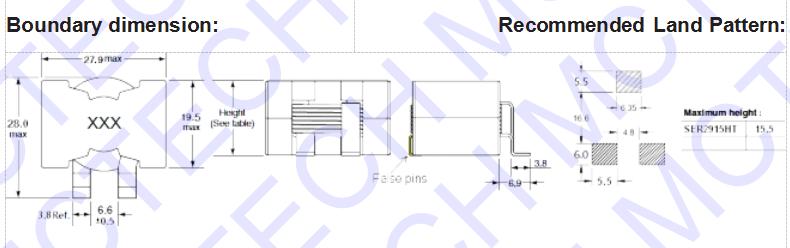

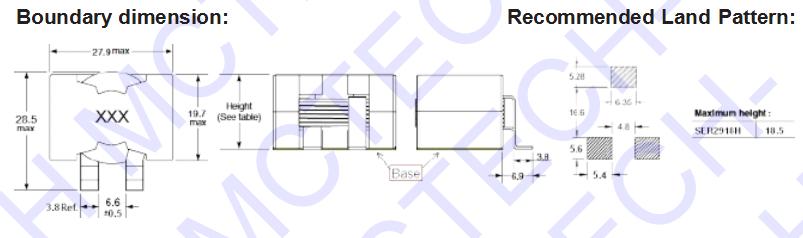

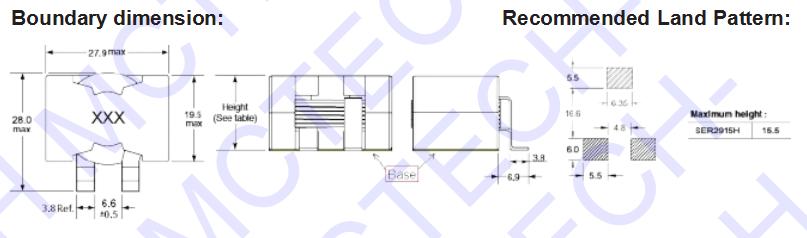

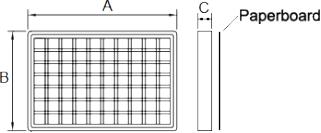

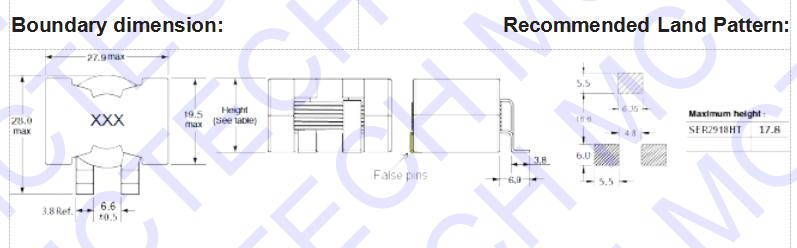

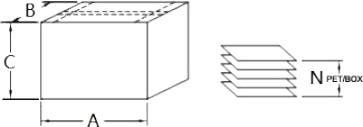

1. PET plate specification: 322*202*24mm 35pcs/PET Box
2. Outer box specification: 340*215*220mm,8 PET plate in one box
| Series Name and Note | Plastic Plate(mm ) | Outer Box(mm ) |
| SER2817H(无假脚) | 35pcs/PET Box | 280pcs/Box |
| SER2915H(带底板) | 35pcs/PET Box | 280pcs/Box |
| SER2915HT(带假脚) | 35pcs/PET Box | 280pcs/Box |
| SER2918H(带底板) | 35pcs/PET Box | 280pcs/Box |
| SER2918HT(带假脚) | 35pcs/PET Box | 280pcs/Box |
