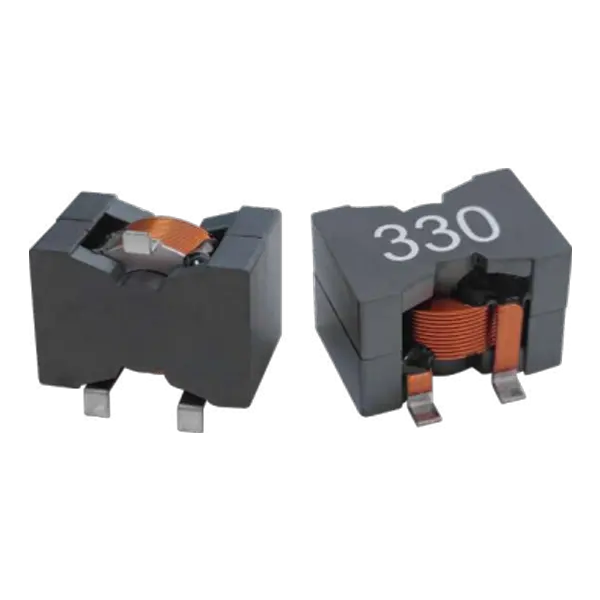

Inductor SER2014 Series

  • bobbin based inductor

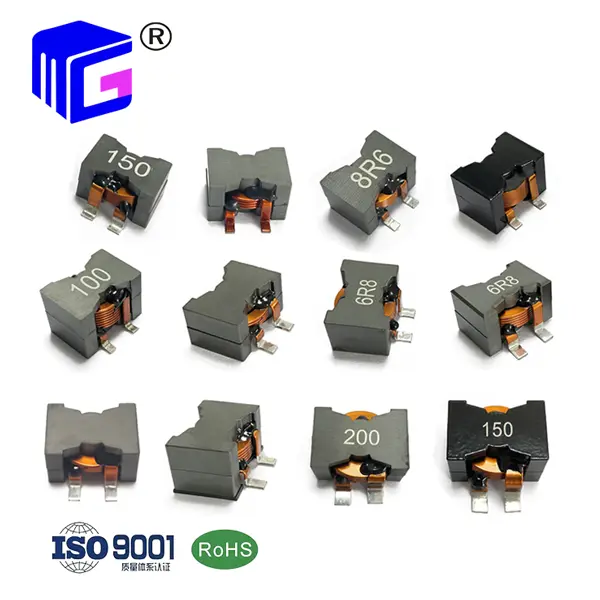

  • bobbin core inductor

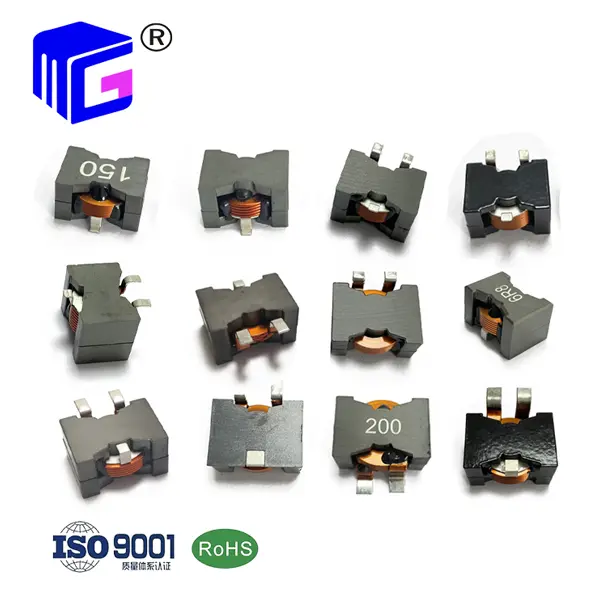

  • bobbin inductor

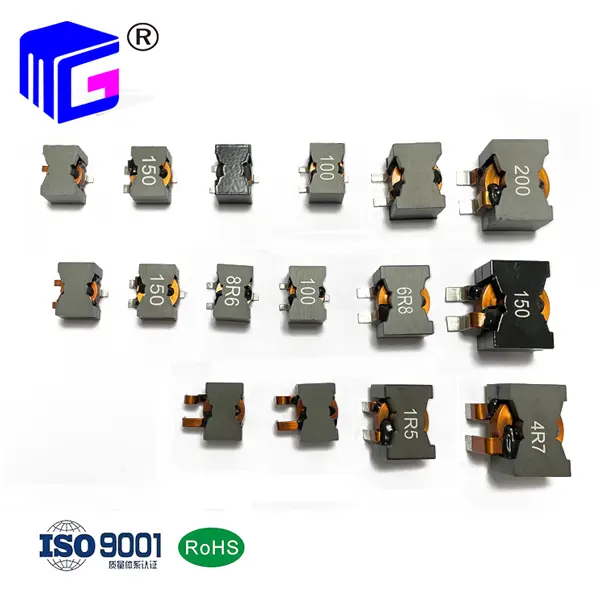

  • bolt inductor

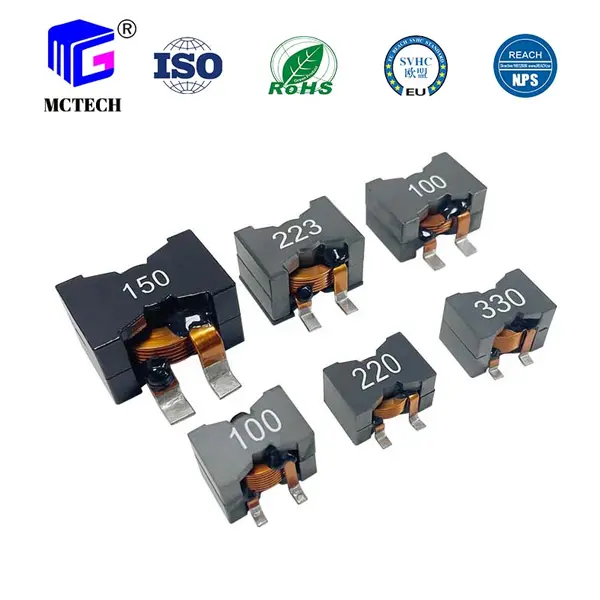

  • broadband conical inductors

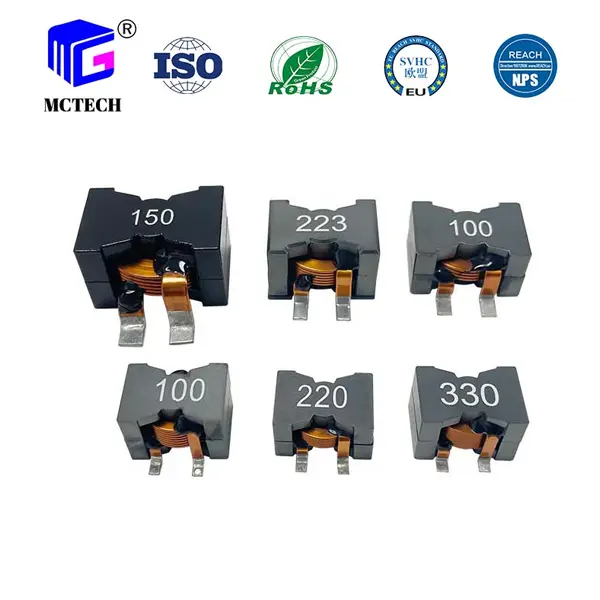

  • buck inductor

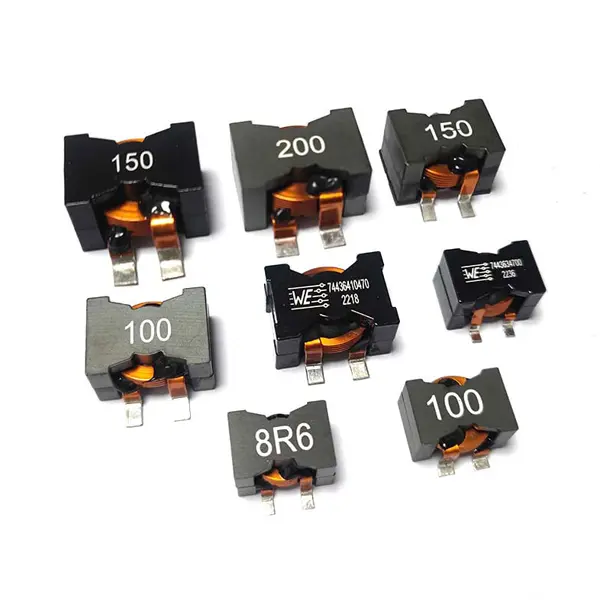

  • cable inductor

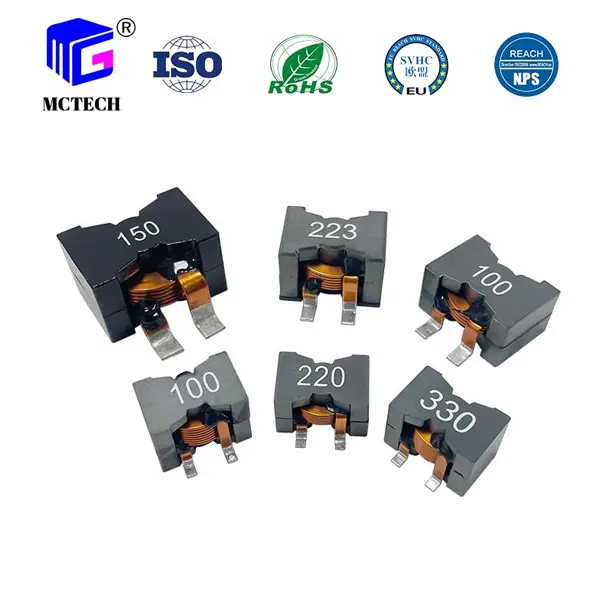

  • c core inductor
  • bobbin based inductor
  • bobbin core inductor
  • bobbin inductor
  • bolt inductor
  • broadband conical inductors
  • buck inductor
  • cable inductor
  • c core inductor
  • Assemblage design, sturdy structure.

  • High inductance, high current, low magnetic loss, low ERS, small parasitic capacitance.

  • Flat wire winding, achieve a low DCR.

  • Temperature rise current and saturation current is less influenced by environment.

  • Operating temperature: -25℃ ~125℃.

  • Placement formis SMD.

As a trusted custom inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

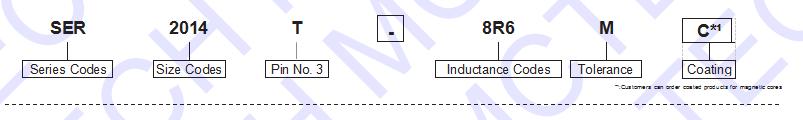

Explanation of part numbers

Inductor SER2014 Series

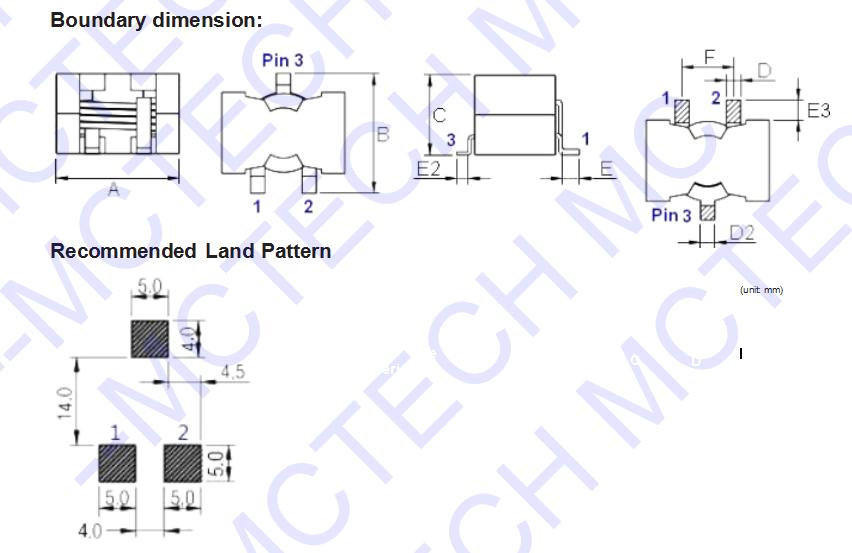

Boundary dimension

Inductor SER2014 Series

series sizeABCDD2
SER2014T21.8 Max21.5-22.5Max14.5 Max2.5±0.22.5Ref.


series sizeEE2E3F
SER2014T3.0±1.02.0Ref.3.5-7.09.0±0.5


Electrical characteristics:

Part No.Lo(0A)
(µH)±20%
Irms(A)
Type.
Isat(A)
Type.
DCR(mΩ)
Type.
DCR(mΩ)
Max.
MaterialSize B
(mm)
DCR
SPEC.
PDF
SER2014T-R70M0.732750.860.95MnZn22.5Confirmed

pdf

SER2014T-1R4M1.431.5601.081.2MnZn22.5Confirmed

pdf

SER2014T-2R2M2.228521.51.65MnZn22.5Confirmed

pdf

SER2014T-3R1M3.126452.092.3MnZn22.5Confirmed

pdf

*SER2014T-3R3M*3.326402.092.3MnZn22.5Confirmed

pdf

SER2014T-4R2M4.224383.043.35MnZn22.5Confirmed

pdf

*SER2014T-4R7M*4.724323.043.35MnZn22.5Confirmed

pdf

SER2014T-5R5M5.5223344.4MnZn22.5Confirmed

pdf

*SER2014T-6R8M*6.821305.656.2MnZn21.5Confirmed

pdf

SER2014T-7R0M721305.656.2MnZn21.5Confirmed

pdf

SER2014T-8R6M8.617257.27.95MnZn21.5Confirmed

pdf

SER2014T-100M1016237.958.75MnZn21.5Confirmed

pdf

SER2014T-150M1514218.79.6MnZn21.5Confirmed

pdf

SER2014T-220M2212.51510.6511.75MnZn21.5Confirmed

pdf

SER2014T-330M33121111.412.6MnZn21.5Confirmed

pdf

SER2014T-470M47118.512.213.5MnZn21.5Confirmed

pdf

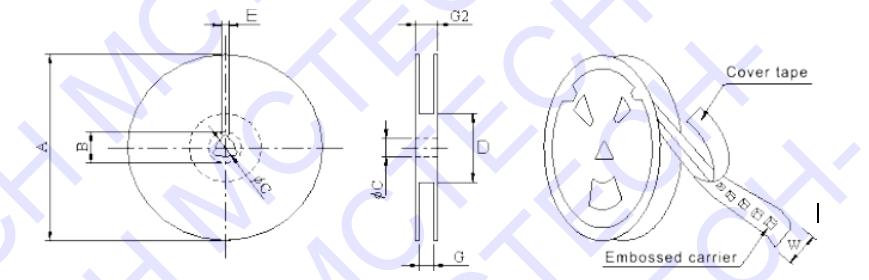

Packing Information

Inductor SER2014 Series

TYPEA(Ref.)B(Ref.)C(Ref.)D(Ref.)E(Ref.)G(Ref.)G2(Ref.)
13''*24mm330±120±0.813±0.5100±12.0±0.544.5±0.549±0.5

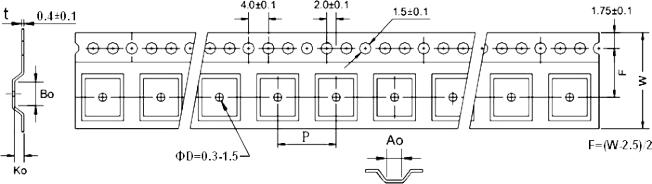

Inductor SER2014 Series

SeriesQTY (Pcs/Reel)AoBoKoWP
SER2014120 Ref.24.521.517.54432

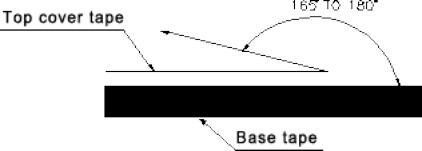

Typical Pulling Force: 10~130grams

Inductor SER2014 Series
