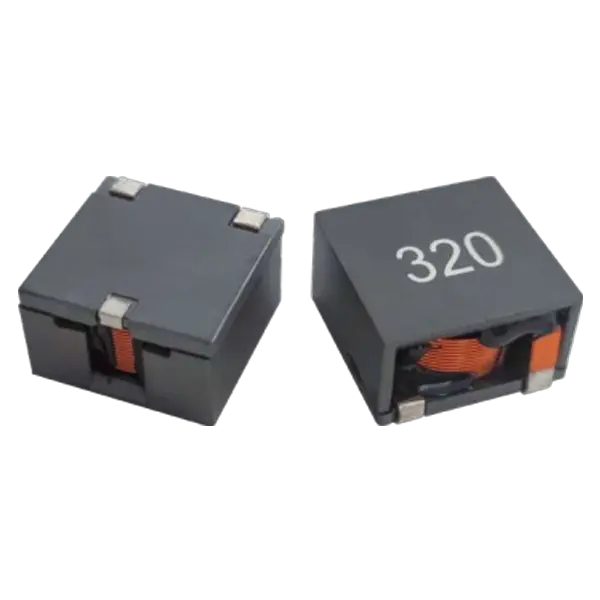

  • Inductance Component Range: 1.0uH to 50.0uH

  • Current Rating: up to 70Apk

  • Footprint: 21.7mm x 21.5mm Max

  • Height: 10.6 / 12.5mm Max

  • No Thermal Aging

As a trusted custom inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

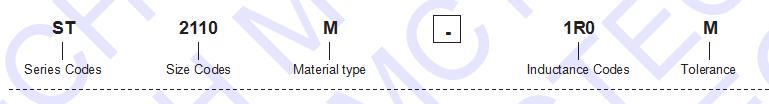

Explanation of part numbers

Inductor ST Series

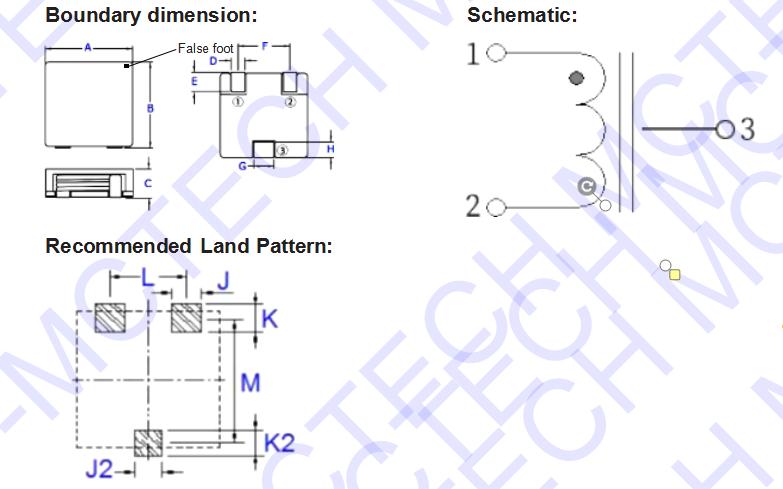

Boundary dimension

Inductor ST Series

series sizeABCDEFGH
ST2110M21.7Max21.5Max10.6Max3.0±0.32.3Min14.5±0.52.5Ref.2.4Ref.
ST2110M-4R7M21.7Max21.5Max11.5Max3.0±0.32.3Min14.5±0.52.5Ref.2.4Ref.
ST2112M21.7Max21.5Max12.5Max3.0±0.32.3Min14.5±0.52.5Ref.2.4Ref.


series sizeJKJ2K2LM
ST2110M4.0Ref.5.0Ref.4.0Ref.4.0Ref.14.5Ref.17.5Ref.
ST2110M-4R7M4.0Ref.5.0Ref.4.0Ref.4.0Ref.14.5Ref.17.5Ref.
ST2112M4.0Ref.5.0Ref.4.0Ref.4.0Ref.14.5Ref.17.5Ref.


Electrical characteristics:

MCT
Part Number
Controlled Electrical Specs.Irated(A)Heating Current Idc  (ATYP)Saturation
Current
Isat (ATYP)25°C
Pulse
Part Number
PDF
Inductance@  0Adc(μH ±20%)DCR(mΩ)Max
ST2110M-1R0M11.4404070PG1083.102NL

pdf

ST2110M-1R5M1.21.4404052PG1083.152NL

pdf

ST2110M-2R2M2.21.8343446PG1083.222NL

pdf

ST2110M-3R3M3.32.2282837PG1083.332NL

pdf

ST2110M-4R7M4.72.8262630PG1083.472NL

pdf

ST2112M-6R8M6.83.8222226PG1083.682NL

pdf

ST2112M-100M10.5617.517.522.5PG1083.103NL

pdf

ST2112M-150M15.29.2141418.5PG1083.153NL

pdf

ST2112M-240M24.515111114.5PG1083.253NL

pdf

ST2112M-320M3221.59912.5PG1083.323NL

pdf

ST2112M-500M5032.67.47.410PG1083.503NL

pdf

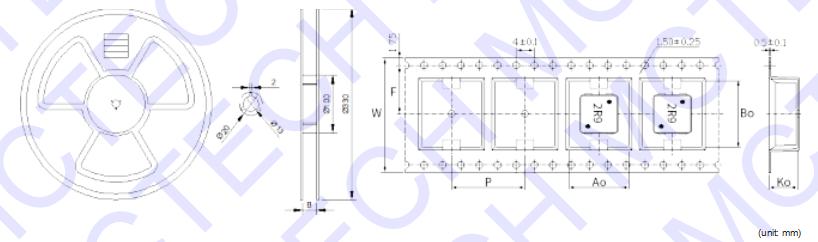

Packing Information

Inductor ST Series

SeriesABAoBoKoWP
ST2110M120(Pcs/Reel)44.5+0.5/-020.8±0.221.8±0.212.7±0.24432
ST2112M120(Pcs/Reel)44.5+0.5/-020.8±0.221.8±0.212.7±0.24432

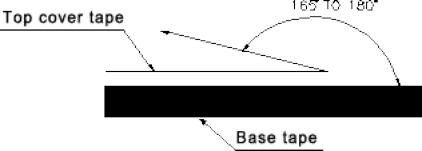

Typical Pulling Force: 30~130grams
